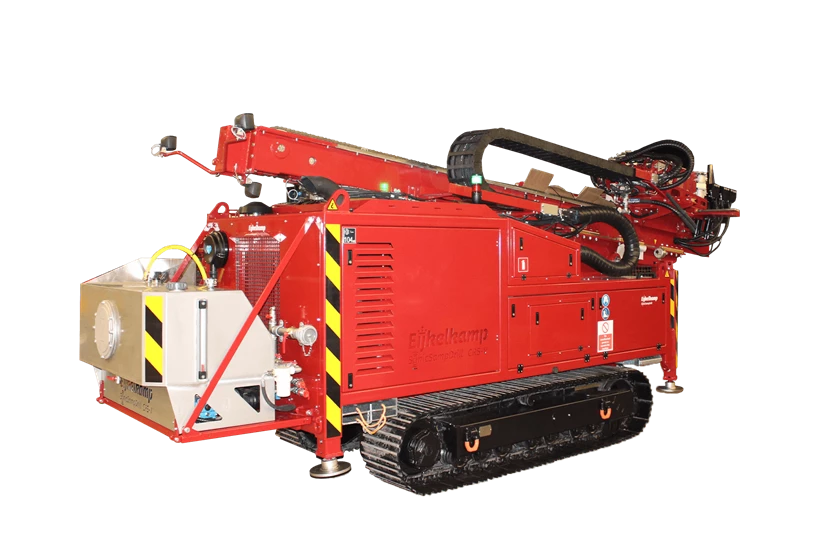

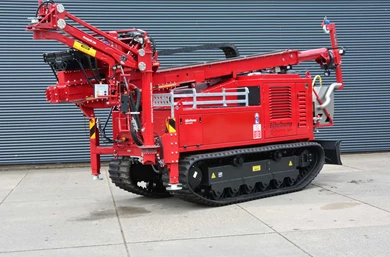

The CompactRotoSonic Crawler is is a drilling rig built to perform under many working conditions, which makes it multi-purpose. Its stability and rigidity optimize the power of the CompactRotoSonic drill head. Thanks to its compact size, the Drilling Rig is easy to maneuver and excels in small spaces.
The CompactRotoSonic Crawler is a drilling machine that can operate under different working conditions. Its stability and rigidity optimise the power of the CompactRotoSonic drill head. This drilling rig excels in smaller spaces because it is so maneuverable.

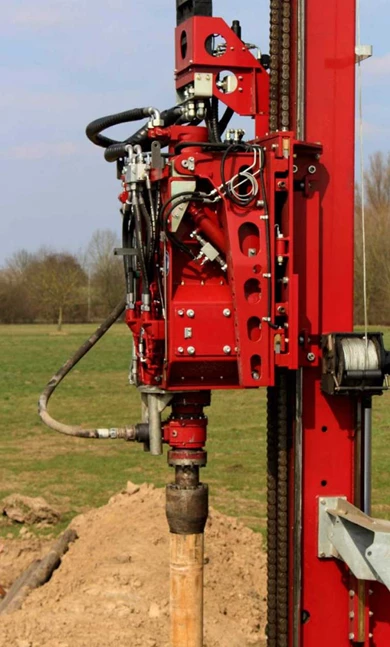

This drilling rig features the drill head which allows simultaneous rotation and vibration. A separate swivel allows for liquid, foam or air assisted drilling. This makes the rig suitable for various applications such as Mineral sampling, Environmental exploration, Geotechnical sampling and testing, Geo-constructional drilling, Seismic drilling. We also offer customized solutions. For all specifications, please download the specifications sheet.
Options available:
If you have any questions, please contact our specialists.
| CRSV 170 | |
|---|---|
| Maximum Frequency | 0-150 Hz |
| Sonic vibration oscillator output force | 150 kN |
| Rotation torque clockwise | 2.650 Nm @ 185 bar |
| Rotation torque counter clockwise | 3.000 Nm @ 210 bar |
| Working lights | 4 x |
| Pull up | 80 kN |
| Pull down | 65 kN |
| Pull up and down speed | 98 feet (30 meter)/minute |
| Clamping force | 94 kN |
| Break out torque | 26.5 kNm |
| Filename |
|---|
| Brochure CRS V |
