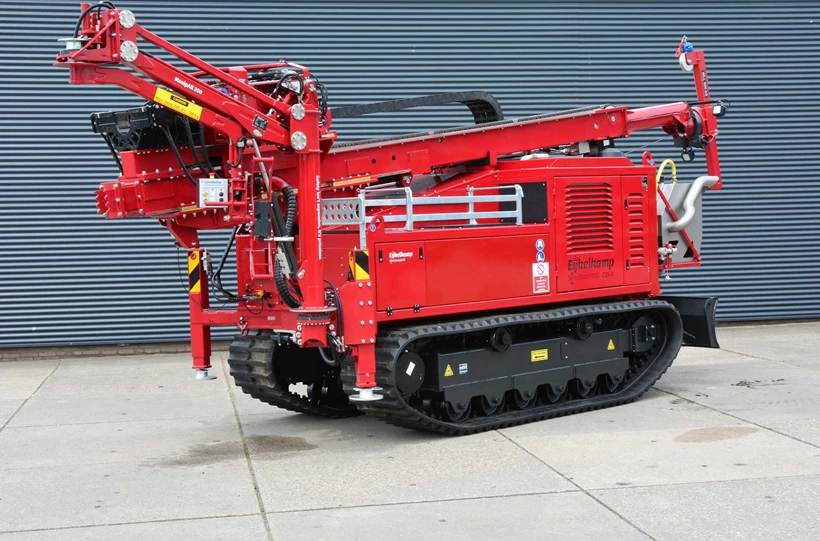

CRS V Sonic drill rig
CRS V Sonic Drill Head
CRS V Pump
Do you want to allow cookies?

Please accept cookies to view this content

Edit cookie settings

CRSV 170

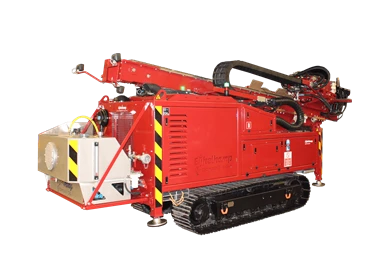

CompactRotoSonic V

The CompactRotoSonic Crawler is is a drilling rig built to perform under many working conditions, which makes it multi-purpose. Its stability and rigidity optimise the power of the CompactRotoSonic drill head. Thanks to its compact size, the Drilling Rig is easy to manoeuvre and excels in small spaces.

  • Separate swivel
  • Great manoeuvrability
  • Can be used for various applications
  • Tooling diameter between 38-203 millimetre

Description

The CompactRotoSonic Crawler is a drilling machine that can operate under different working conditions. Its stability and rigidity optimise the power of the CompactRotoSonic drill head. This drilling rig excels in smaller spaces because it is so manoeuvrable.

This drilling rig features the drill head which allows simultaneous rotation and vibration. A separate swivel allows for liquid, foam or air assisted drilling. This makes the rig suitable for various applications such as Mineral sampling, Environmental exploration, Geotechnical sampling and testing, Geo-constructional drilling, Seismic drilling. We also offer customised solutions. For all specifications, please download the specifications sheet.

Options available:

  • SPT auto drop hammer with blow counter on control panel
  • Mud pump triplex piston
  • SPX40 hose pump
  • Safety cage
  • Triple foot clamp (fixed or floating)
  • ManipAll 200 (magnetic rod loading arm)
  • Casing or drill rod storage depends on diameter and length
  • Rotatable jibboom with second winch

If you have any questions, please contact our specialists.

Specifications

CRSV 170
Maximum Frequency 0-150 Hz
Sonic vibration oscillator output force 150 kN
Rotation torque clockwise 2.650 Nm @ 185 bar
Rotation torque counter clockwise 3.000 Nm @ 210 bar
Working lights 4 x
Pull up 80 kN
Pull down 65 kN
Pull up and down speed 30 metre/minute
Clamping force 94 kN
Break out torque 26.5 kNm
