The LargeRotoSonic hosts the LRS 50K, with simultaneous vibration and rotation, so the full Sonic force is utilised which enables you to reach greater depths. This drilling rig offers state of the art technology and designed to face the most challenging project conditions in the world.
The LargeRotoSonic hosts the LRS 50K, with simultaneous vibration and rotation, so the full Sonic force is utilised which enables you to reach greater depths. This drilling rig contains state of the art technology and is designed to face the most challenging project conditions in the world. Our LRS is extremely strong thanks to the true 150 Hz frequency. We can reach depths of 300 metres or 984 feet, with larger drill pipes and high-quality samples with a larger diameter at a higher rate per day.
When implementing the LRS you have larger drill pipes at your disposal. Also, it is possible to take larger diameter high quality samples at a higher rate per day: all aspects that make the LRS suited for a variety of special projects. From Geo-technical drilling to Sonic sampling for mining and mineral exploration, the LRS makes the difference.
With safety features as the fully automated rod or casing handler and triple floatable clamp, the LRS also provides a safe and ergonomic working method. We can also offer many personalised options. For all specifications, please download the specifications sheet.
Options available:
If you have any questions, don't hesitate to contact one of our specialists.
| LRS 355 | |
|---|---|

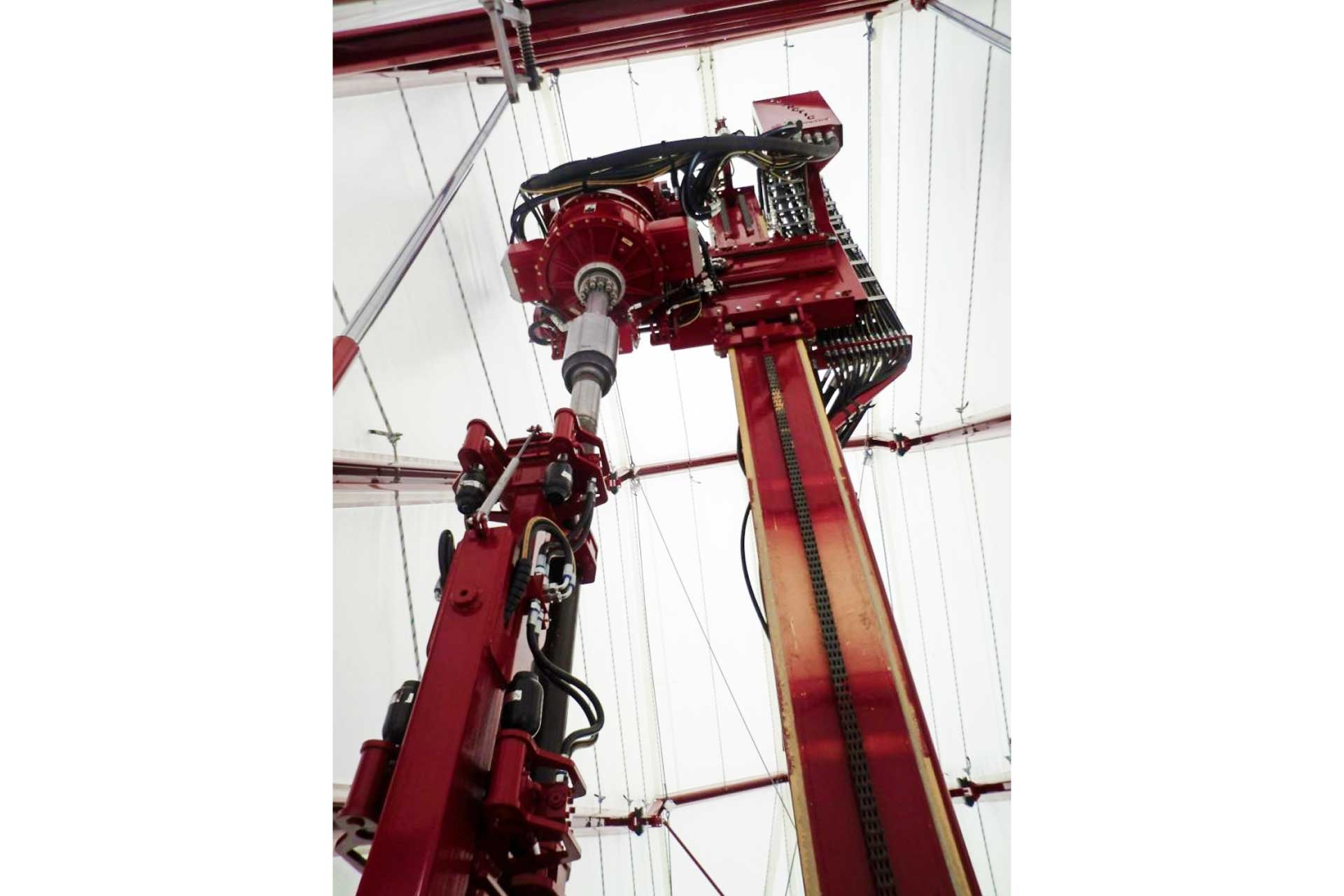

| LargeSonic (50k) drillhead | Including tilt frame |
| Sonic output force | 50.000 lbs |
| Max. Frequency | 0-150 Hz |
| Rotation torque clockwise | 5.250 ft-lb @ 0-140 RPM |
| Rotation torque counter clockwise | 7.000 ft-lb @ 0-140 RPM |
| Working lights | Included |
| Mast dump | 1.200 mm |
| Pull up | 120 kN |
| Pull down | 80 kN |
| Pull up & down speed | 45 metre/minute |

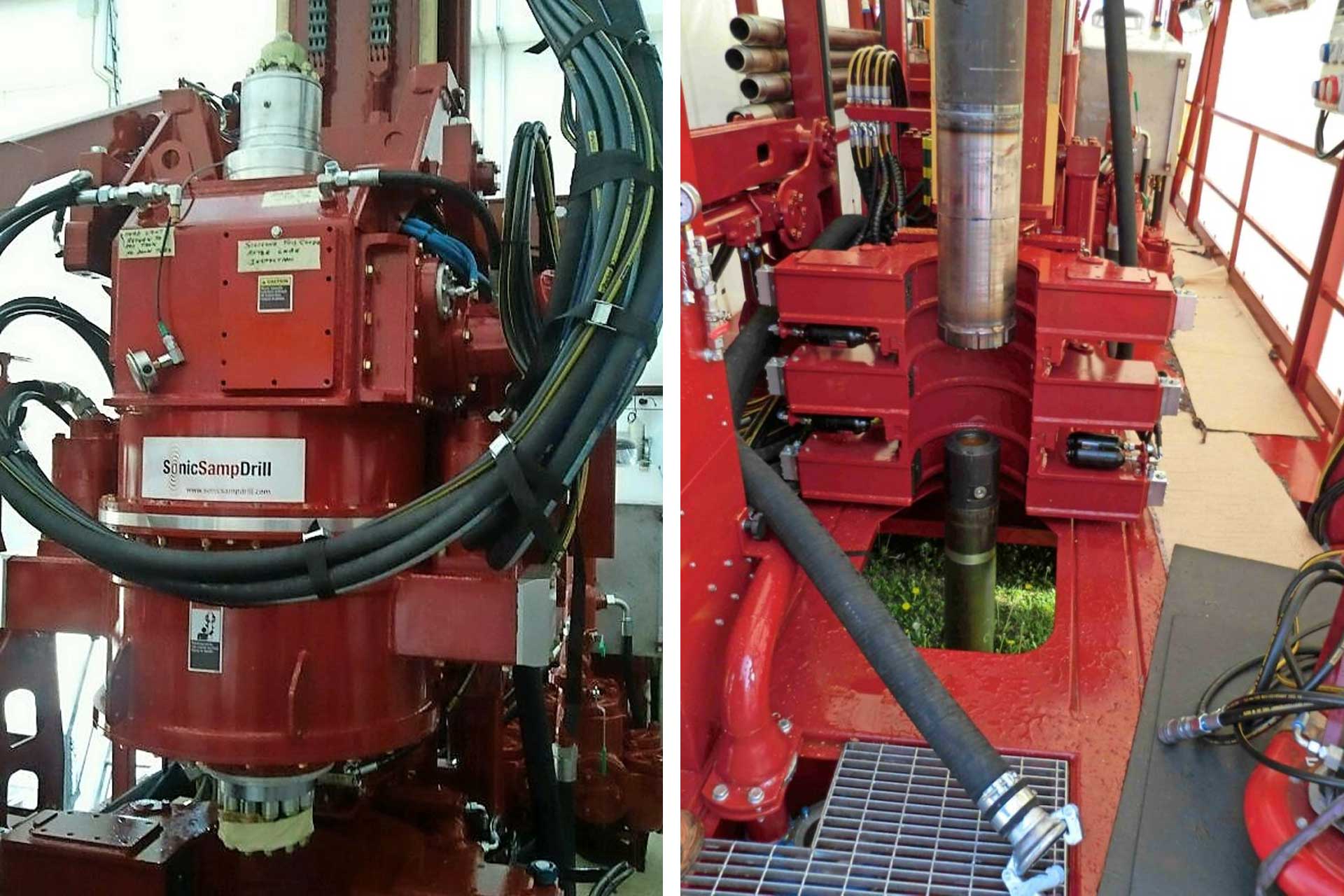

| Double hydraulic break out clamp | 60 - 350 millimetre |
| Adjustable clamping force | 250 kN |
| Break out torque | 78 kNm |
