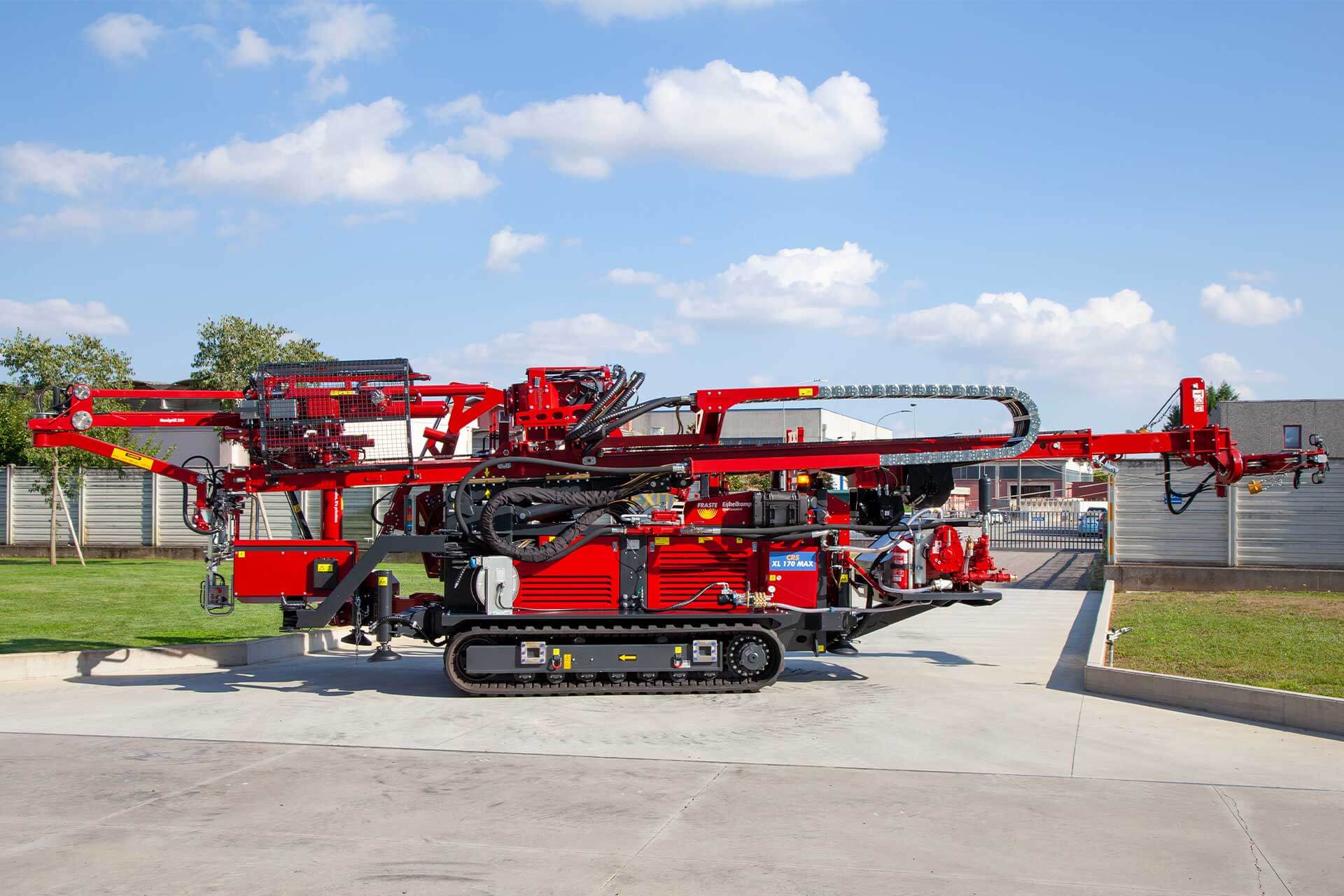

CRS XL MAX sonic drill rig

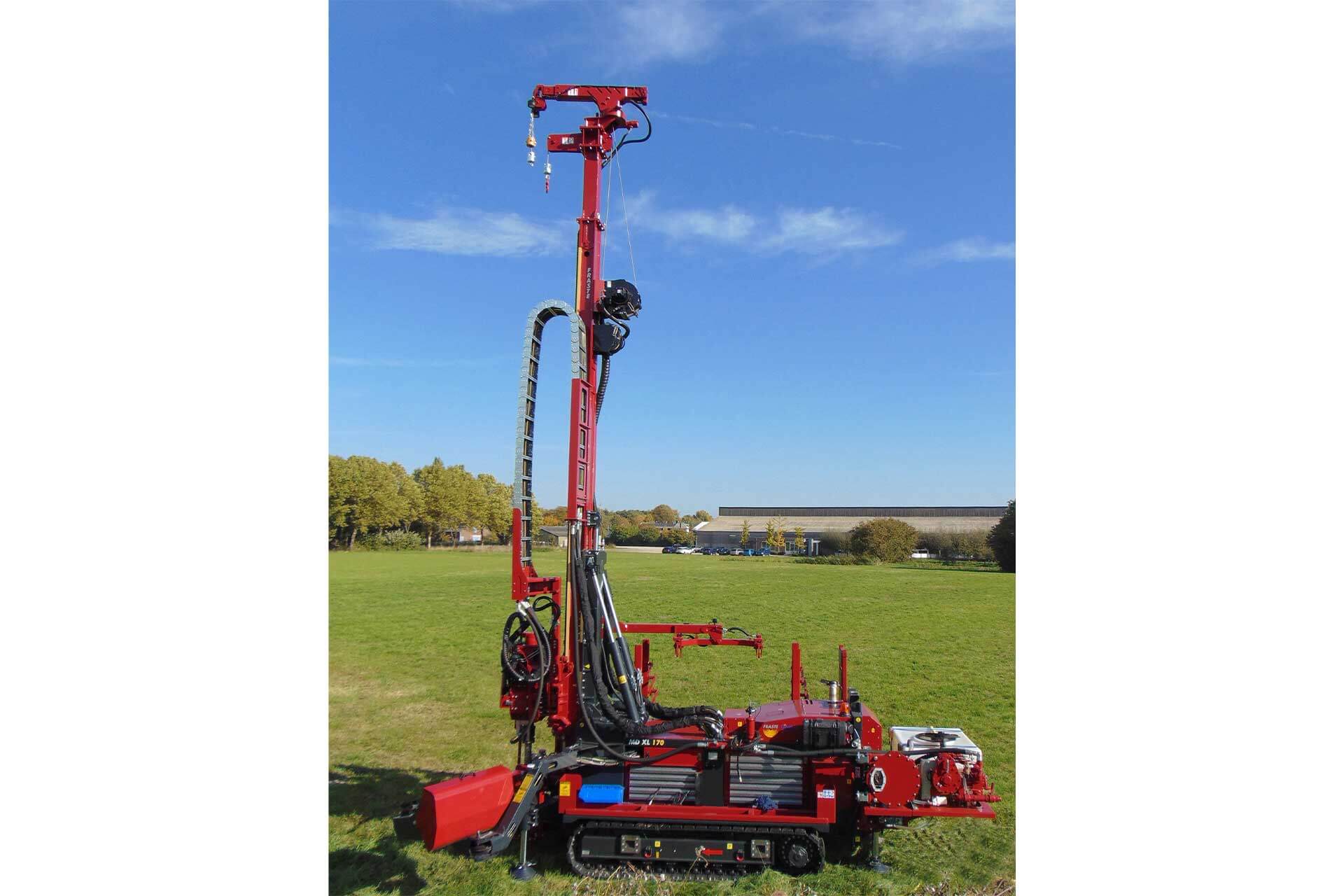

CRS XL MAX sonic drill rig

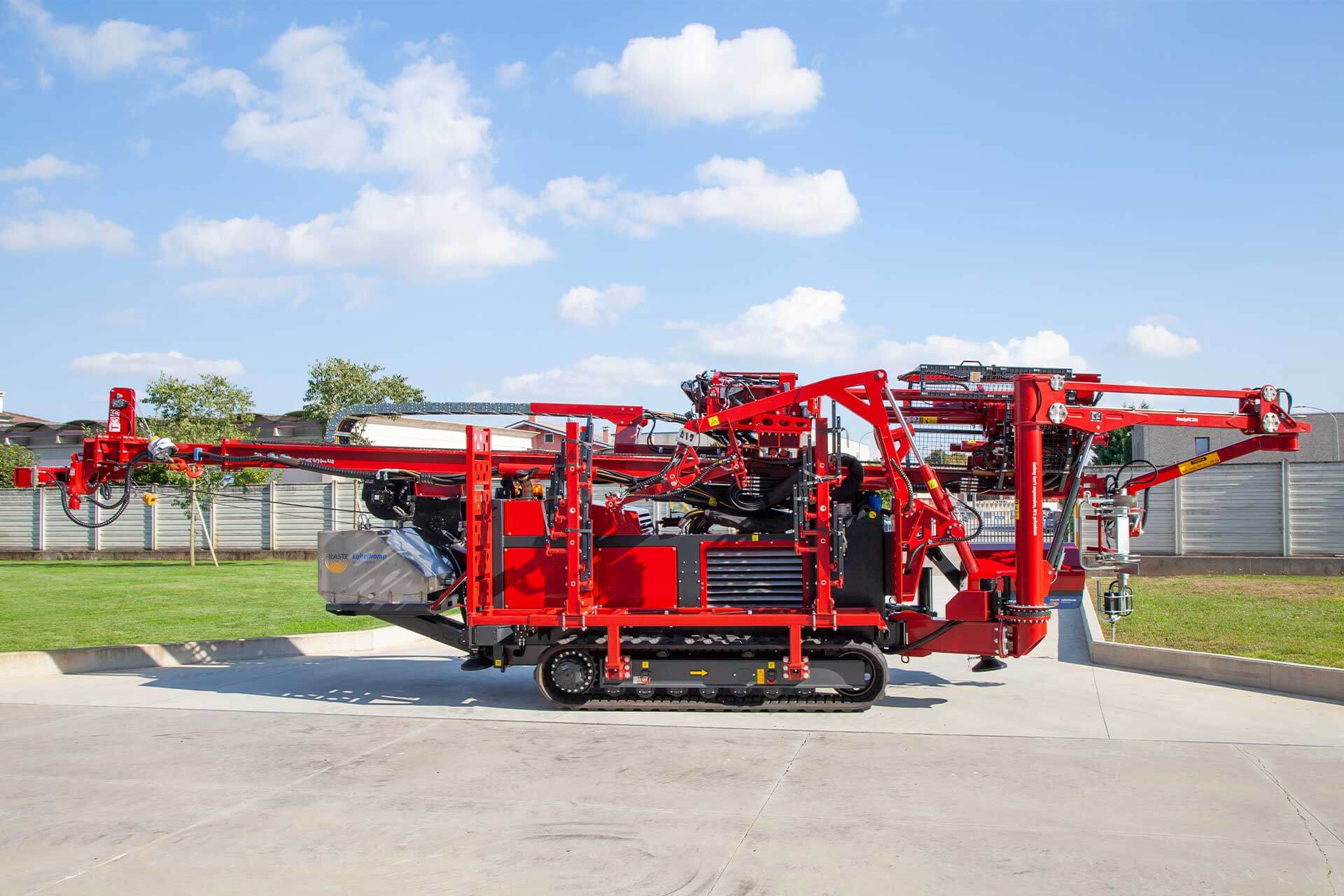

CRS XL MAX sonic drill rig
CRS XL MAX sonic drill rig control panel

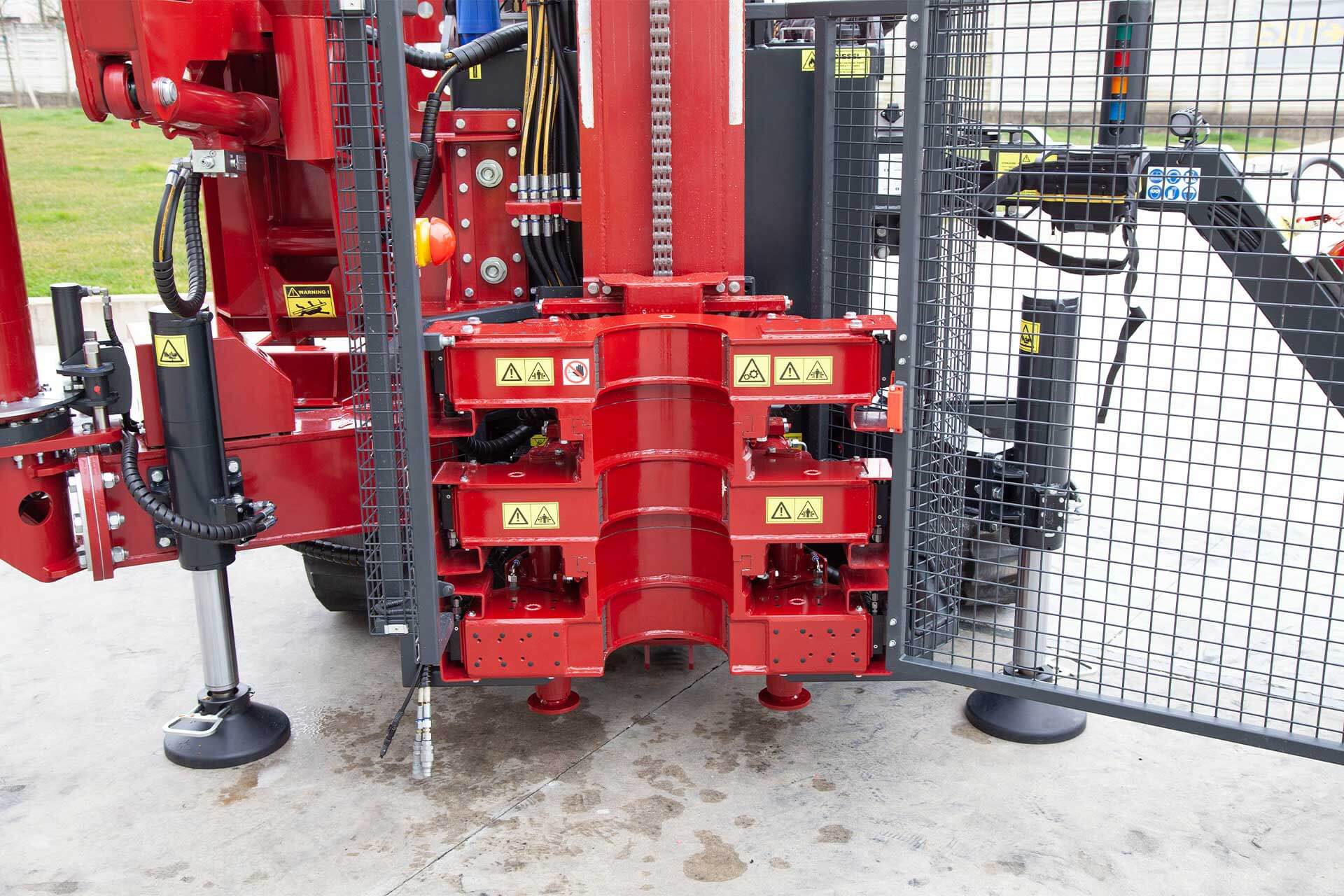

CRS XL MAX break out clamps
CRS XL MAX sonic drill rig
CRS XL MAX sonic drill rig
CRS XL MAX sonic drill rig control panel
CRS XL MAX break out clamps

CRS 170

0300026

The CompactRotoSonic 170 (CRS 170) is a powerful drilling rig that can be used in various working conditions. The machine is easy to maneuver, making it suitable for use in confined spaces. A separate swivel allows liquid, foam or air assisted drilling. The CRS 170 allows you to use SPT as well.

  • Compact but powerfull
  • Separate swivel
  • Rod manipulator on side of the rig
  • Possibility for several pump options
  • Tooling diameter between 38-203 millimetre

Description

The CRS 170, previously known as the XRS XL 170 MAX is not only powerful but also versatile. The easy-to-use drill is easy to manoeuvre, making it perfect for use in smaller spaces. The Sonic drill comes with a drill rod manipulator that allows you to easily move drill tubes without touching them by hand. Our CRS 170 is extremely powerful thanks to the true 150 Hz frequency delivered by the machine.

The machine can be used in many ways and can be used anywhere. For example, this powerful machine is suitable for mineral sampling, environmental research, geotechnical sampling and testing, geoconstruction drilling and seismic drilling in short, it can be used anywhere. The drilling rig has an output power of 150 kN/33.8K lbf (synchronised). Our CRS 170 offers maximum power in small spaces thanks to the machine's manoeuvrable design. The CRS 170 is available in a Pro and a Royal variant, choose one of these variants for a shorter delivery time. If one of these variants does not meet your requirements, feel free to contact us. Our experts are ready to discuss your needs and requirements and create a customised installation that fully meets your needs. If you want to be able to drill conventionally as well as sonically, you can also opt for a CRS 170 DUO.

If you have any questions, please contact our specialists.

Specifications

CRS 170
Pull up force 12.000 daN/26.976 lbf
Engine 170 HP CAT stage 5 engine
Steel chain crawler carrier with rubber pads Yes
Radio remote Optional
Drilling mast for 3m/10' drill rods
Footclamp 60-280 mm triple footclamp
Winch Hydraulic 2.000 daN or 3.600 daN
Bean/ FMC pump Yes, L06-18 or L11-22
ManipAll 250 yes, optinal remote control
Eijkelkamp Service Assistant Included
