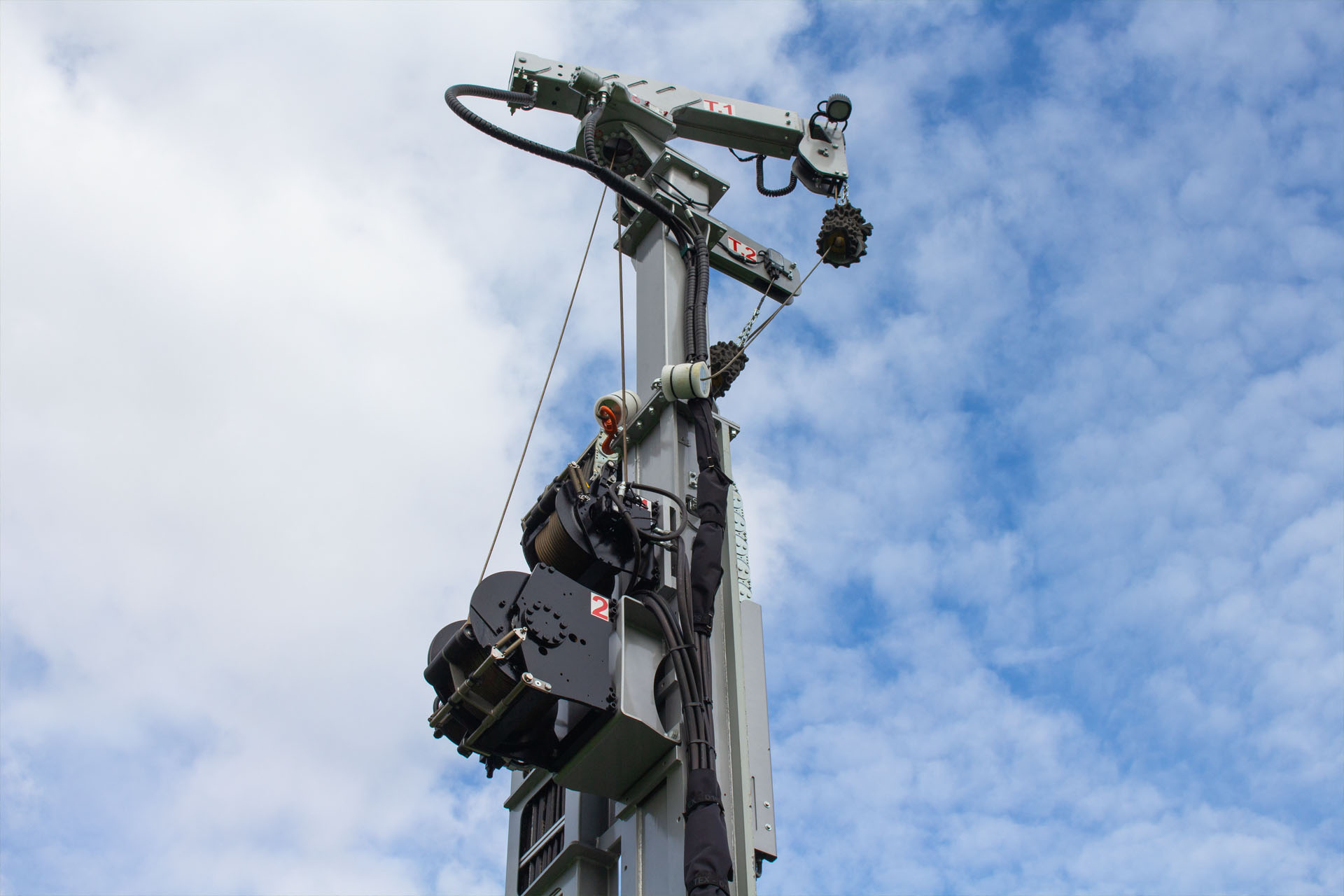

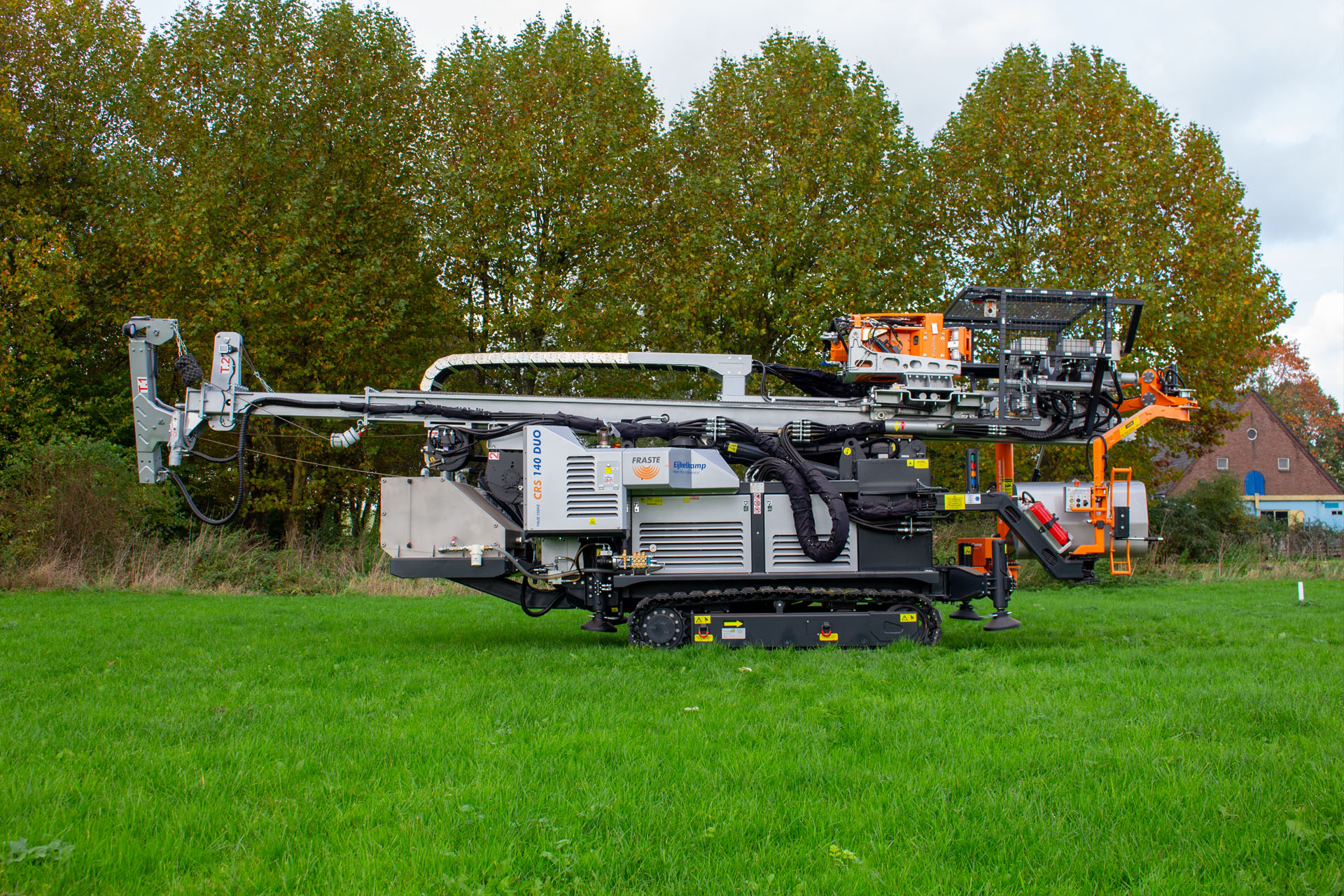

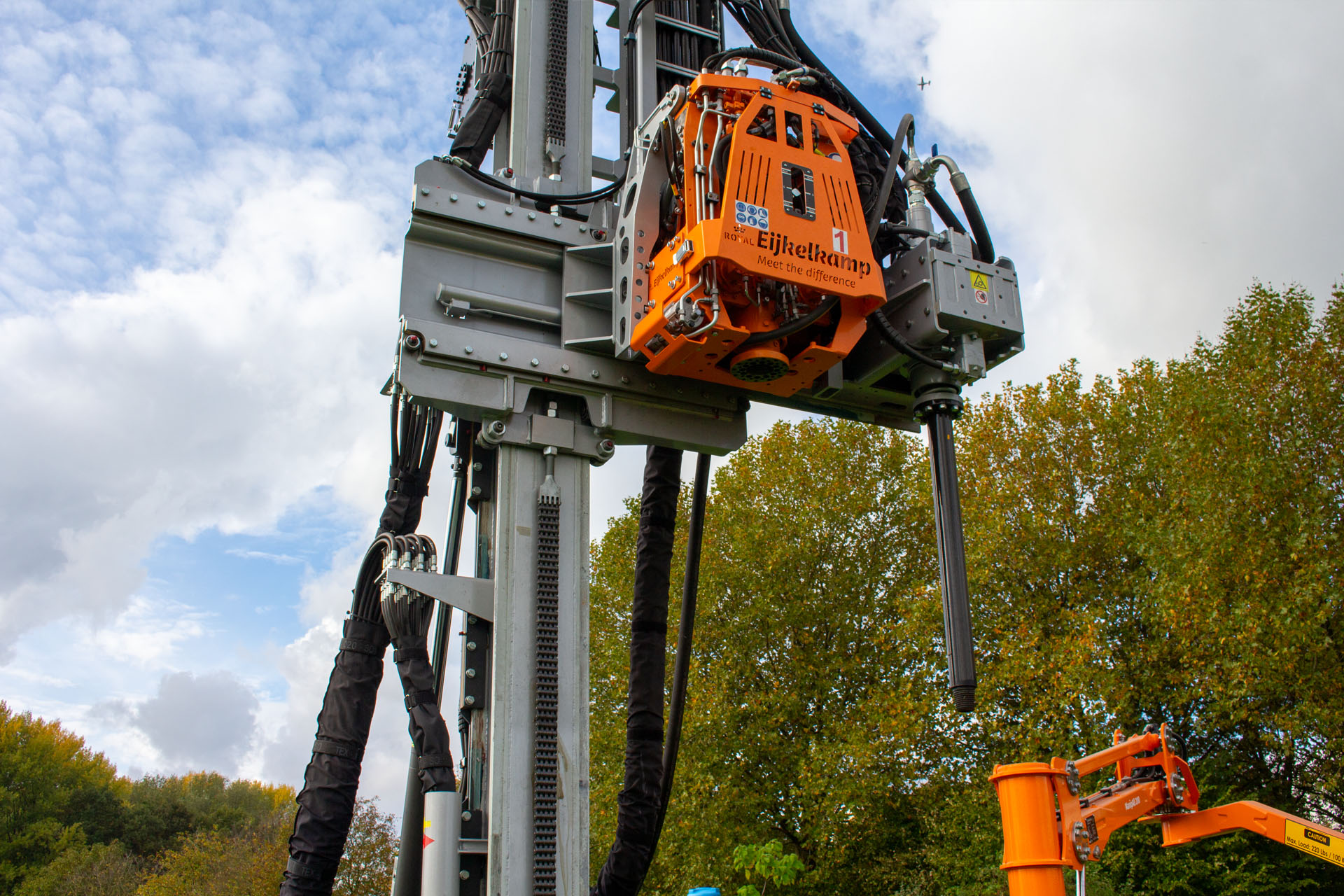

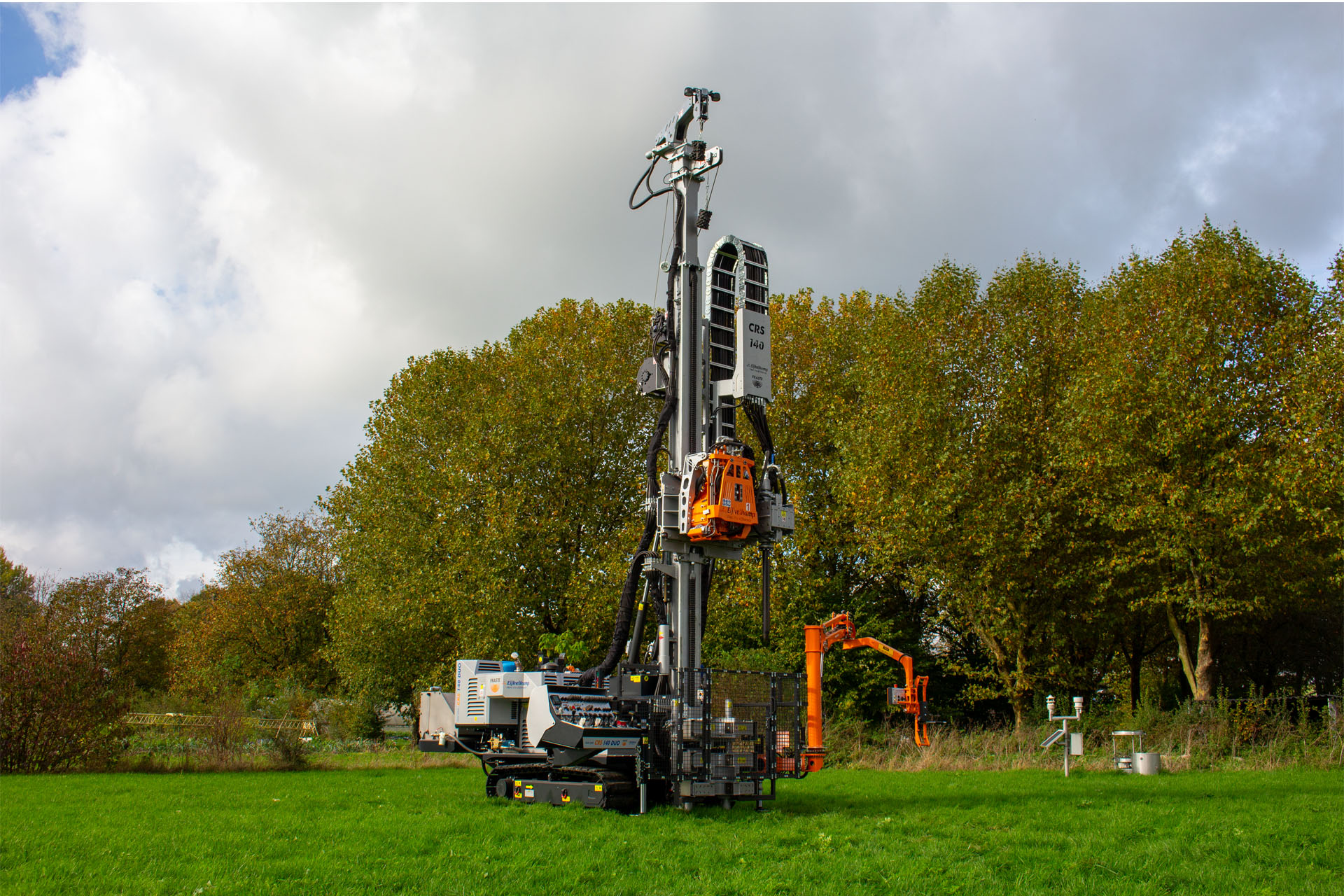

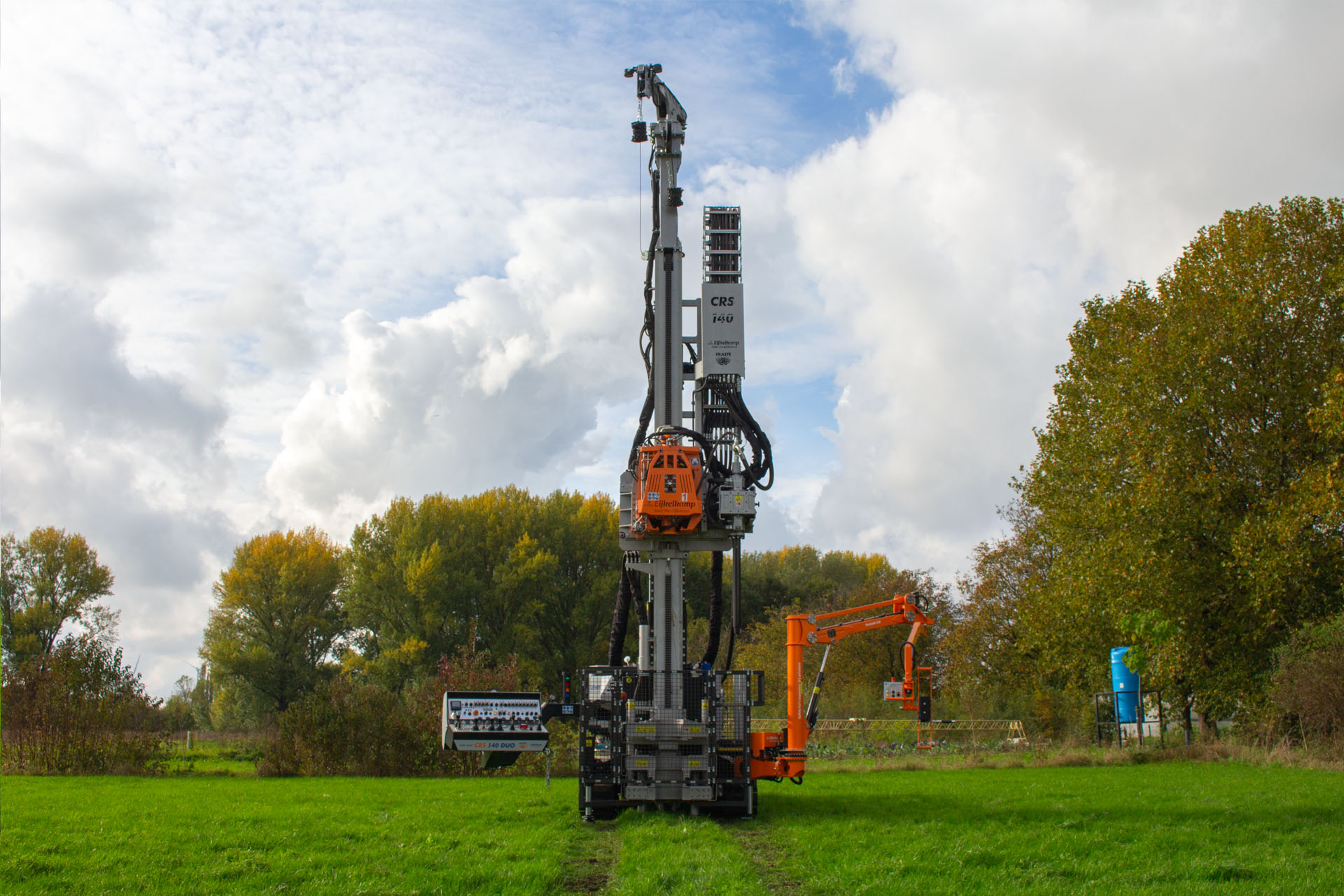

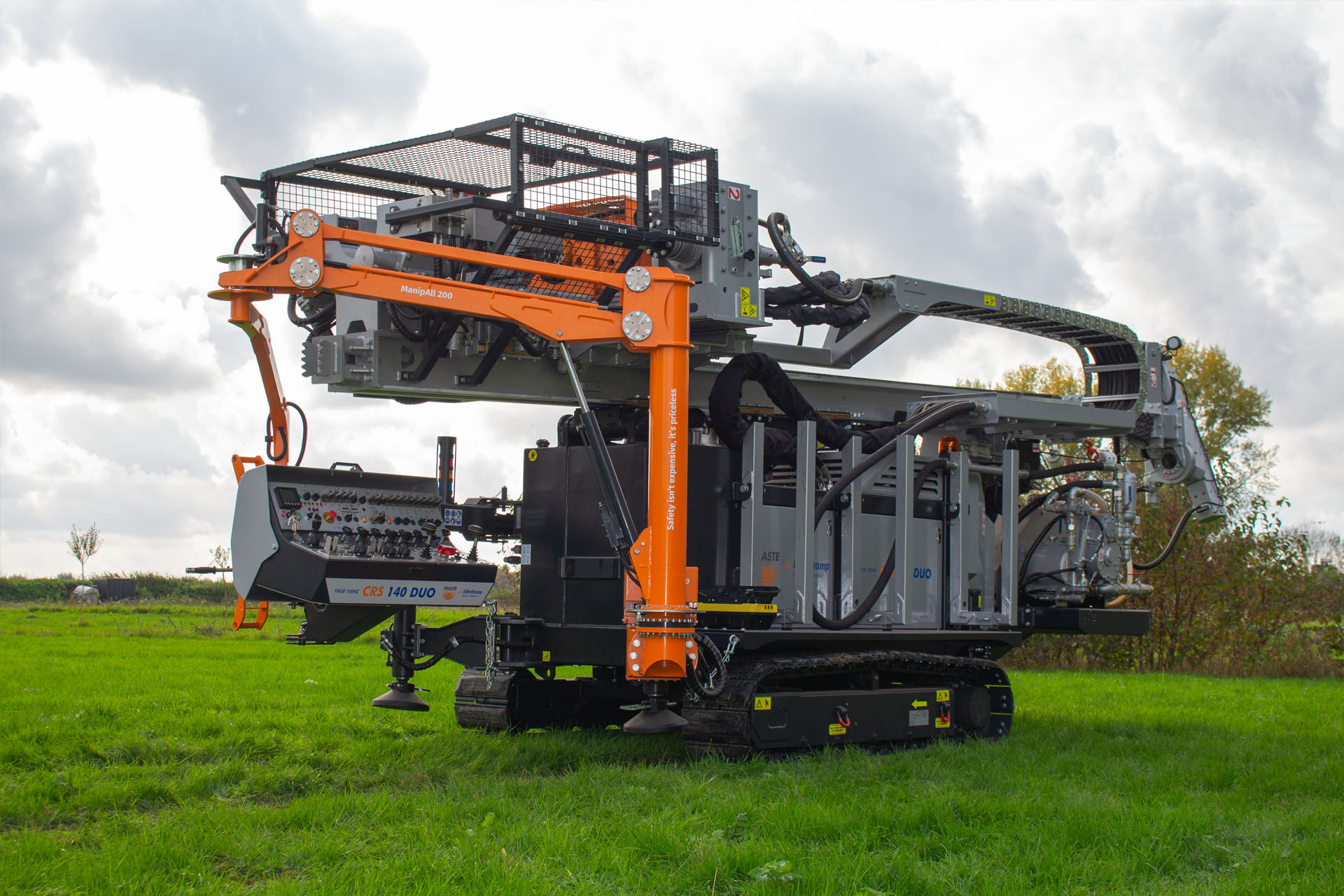

The CRS 140 DUO True 150Hz sonic drilling rig is a powerful sonic drilling rig with both sonic and conventional drillhead. The rig is equipped with a CompactRotoSonic 34K drill head as well as a four speed rotation head. Thanks to both drilling heads, this powerful machine can handle all kinds of conditions and provides you with the best samples.
The CRS 140 DUO is one of our powerful drills equipped with two powerful chucks. The different chucks ensure the machine does the job it needs to do in all kinds of conditions. Use the trolley board to easily change the drill heads. This is to combine sonic sampling with diamond drilling in the same drill hole and is very easy. If you only need sonic drilling power, you can choose a CRS 140, a powerful machine suitable for all your sonic drilling jobs.

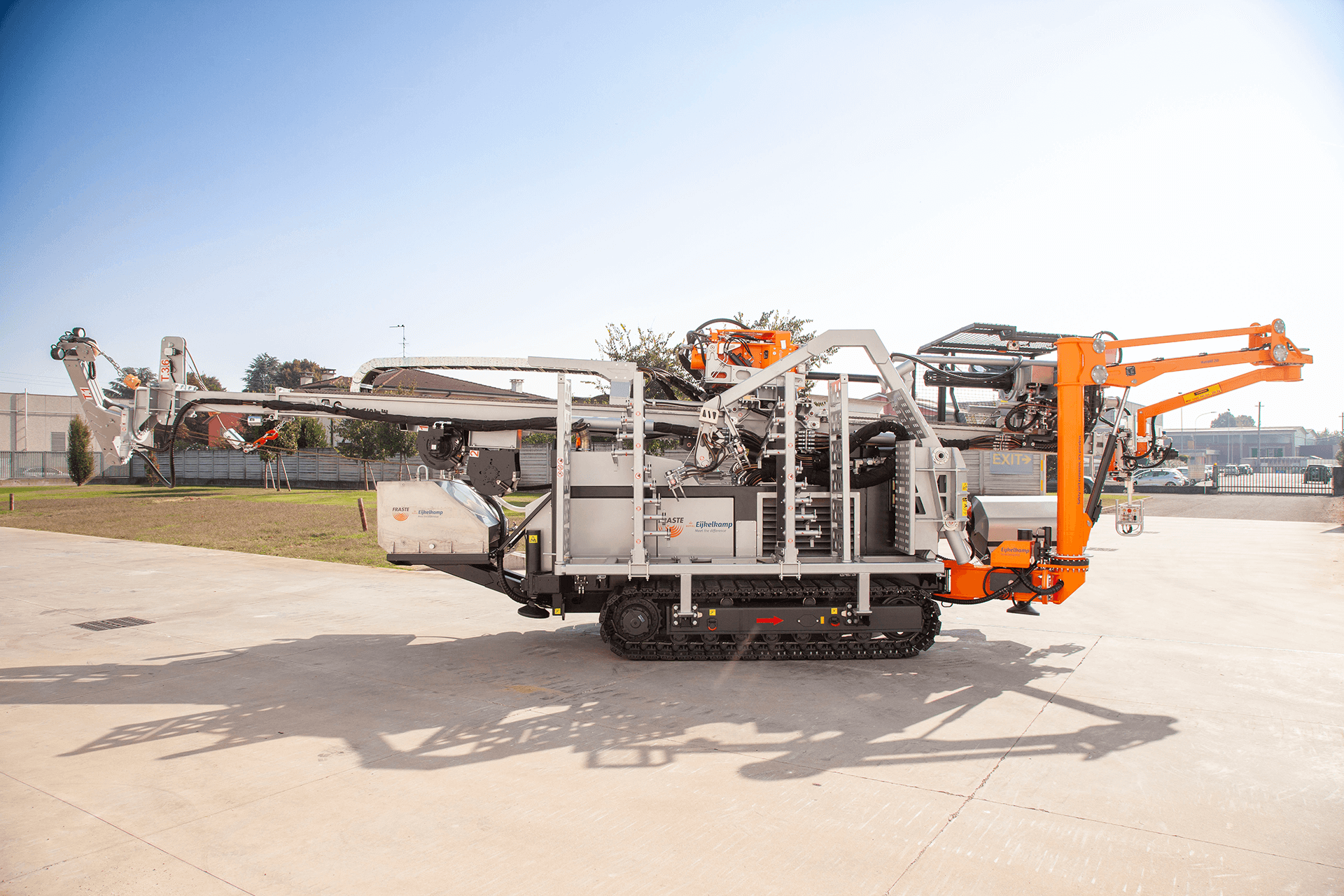

This extremely powerful CRS140 DUO is the smaller brother of the CRS 170 DUO, but with its 140 hp it still delivers the power you need for all kinds of different applications. Its slightly more compact size makes it very manoeuvrable. The CRS 140 DUO ideal for mineral sampling, environmental research, geotechnical sampling and testing, geological drilling and seismic drilling. Royal Eijkelkamp offers the option to customise your CRS 140 DUO to suit your needs and requirements. Choose a fully customised machine or choose one of our standard configurations for a shorter delivery time through our stock. We offer two standard configurations called Pro and Royal. Download the overview here.
Ask our experts for all possibilities.
*) Please note: our machines are supplied in silver from now on. If you do want a different colour please let our experts know.
| CRS 140 DUO | |
|---|---|
| Pull up force | 10.000 daN/22.480 lbf |
| Engine | 140 HP CAT stage 5 engine |
| Steel chain crawler carrier with rubber pads | Yes |

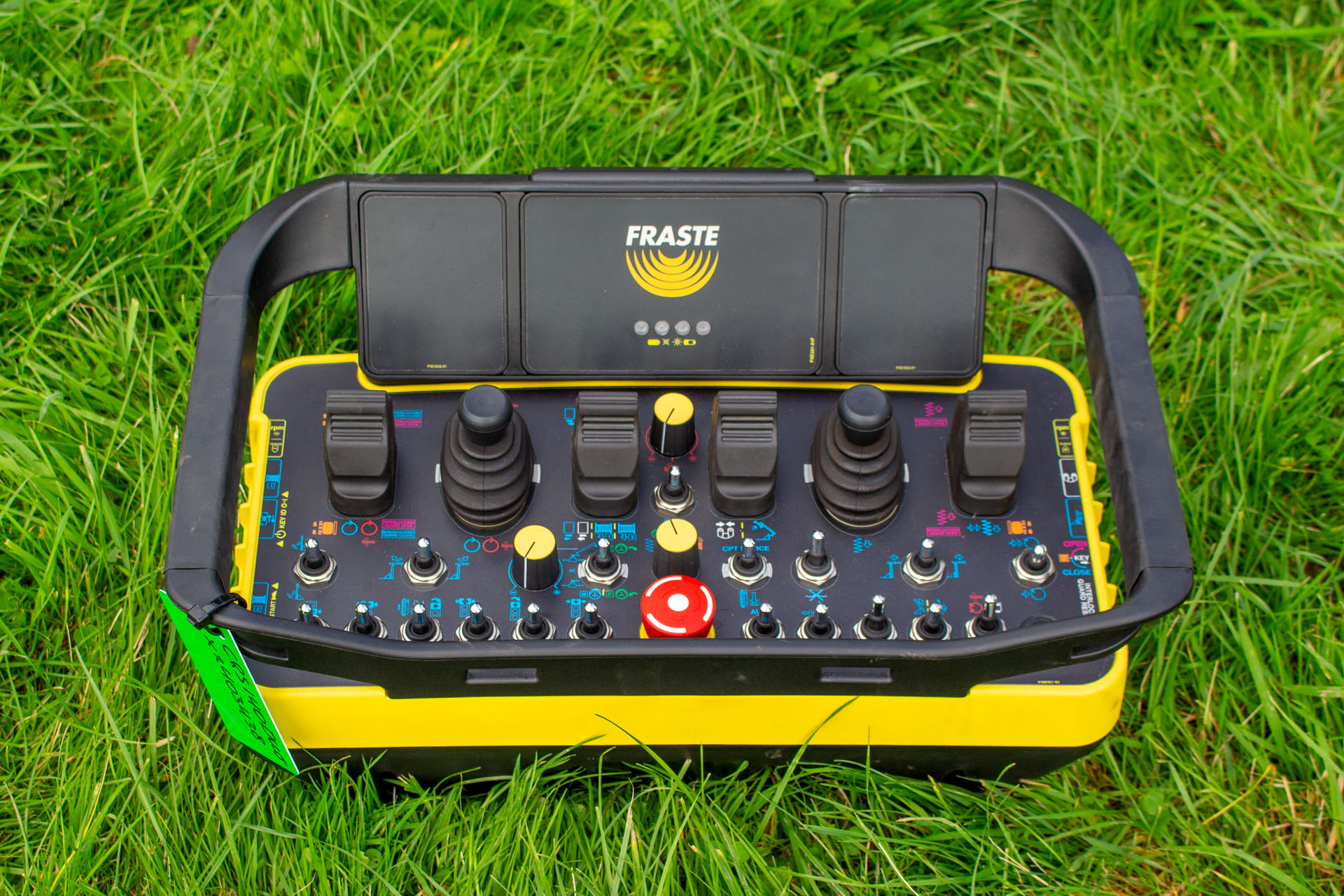

| Radio remote | Optional |
| Drilling mast | for 3m/10' drill rods |

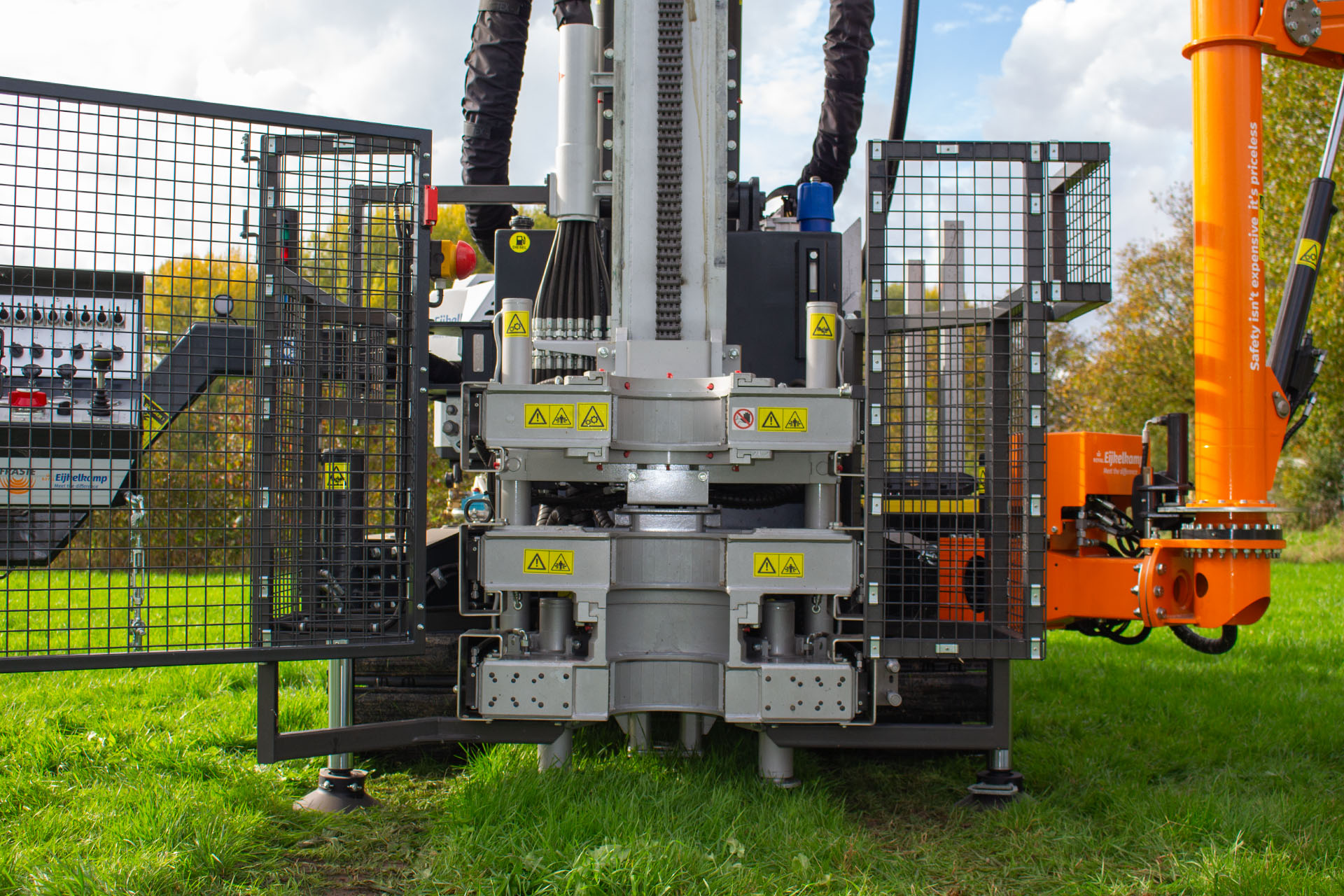

| Footclamp | 60-280 mm triple footclamp |
| Winch | Hydraulic 2.000 daN |
| Bean/ FMC pump | Yes, L06-18 or L11-22 |

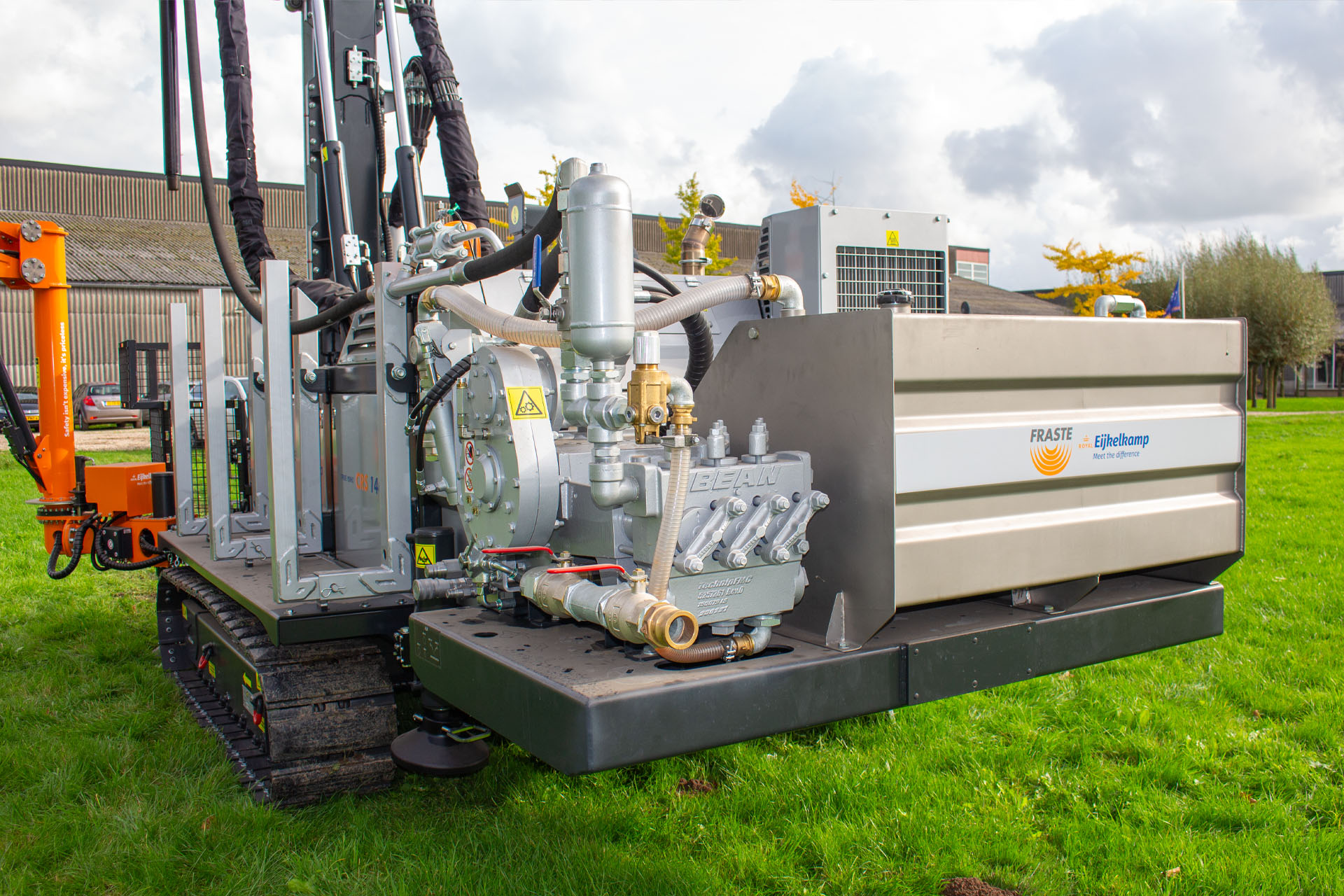

| High presure waterpump | yes |
| Eijkelkamp Service Assistant | Included |
