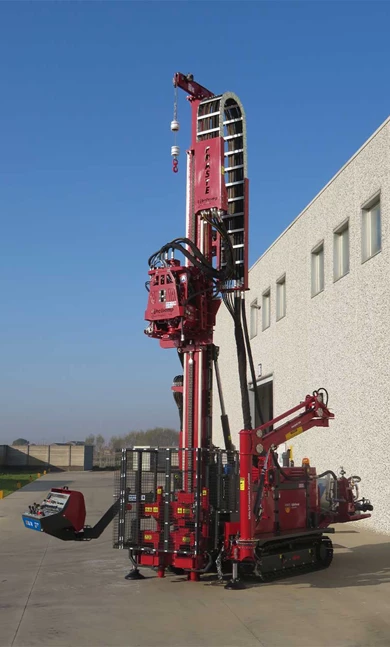

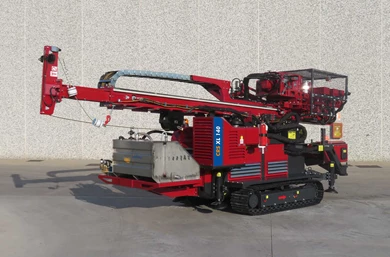

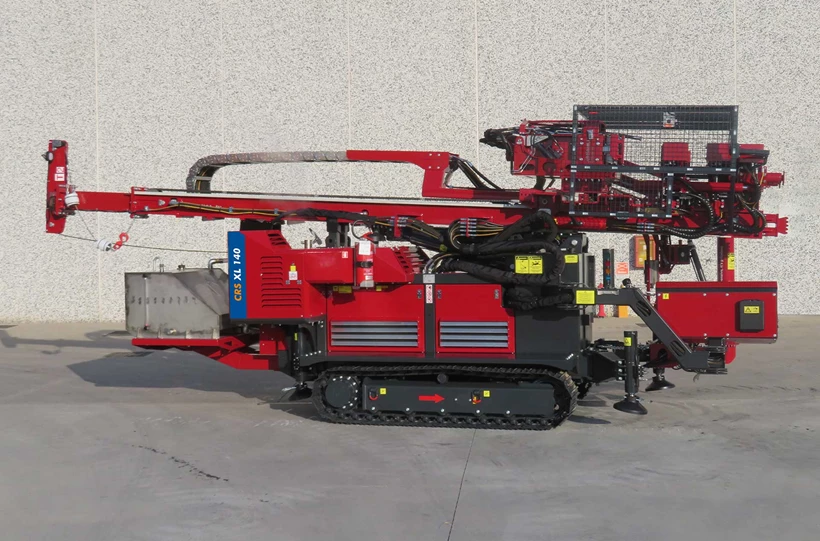

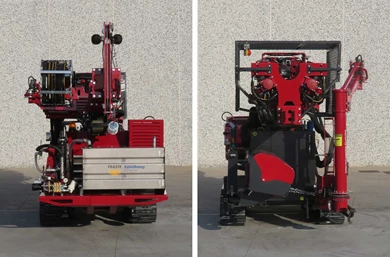

The CRS 140 True 150Hz sonic drilling rig is built to perform in the most challenging and diverse working conditions. The machine is easy to maneuver thanks to its simple controls, even in smaller spaces. A separate swivel allows drilling with fluid, foam or air support. With the CRS 140, you can also use SPT.
The CRS 140, previously known as the CRS XL 140 is a powerful sonic drilling rig equipped with a True 150 hZ CompactRotoSonic 34K drill head. This drill rig is a smaller version than the CRS 170 but, despite this, certainly no less. The CRS 140 is a nice compact machine that is incredibly powerful thanks to its drill head. Its compact size makes it easy to maneuver and its powerful drill head means it delivers exactly what you need. The CRS 140 drill is available in a Pro and a Royal variant. The CRS 140 is also available in DUO which gives you the possibility to perform sonic sampling and diamond coring in the same borehole. You can find the specifications of these variants in the overview table that you can easily download. Is this not close to what you are looking for? Then we can also tailor a machine to your needs and requirements.
The CRS 140 offers maximum power, is easy to operate and is perfect for many different applications. For example, the machine is suitable for taking mineral samples. Furthermore, you can use the machine for Environmental research, Geotechnical sampling and testing, Geo-construction drilling and Seismic drilling. If you want to know more about this machine, contact our experts. A comprehensive brochure is also available for download.
If you have any questions, please contact our specialists.
*) Please note: our machines are supplied in silver from now on. If you do want a different colour please let our experts know.
| CRS 140 | |
|---|---|
| Pull up force | 10.000 daN/22.480 lbf |
| Engine | 140 HP CAT stage 5 engine |
| Steel chain crawler carrier with rubber pads | Yes |
| Radio remote | Optional |
| Drilling mast | for 3m/10' drill rods |
| Footclamp | 60-280 mm triple footclamp |
| Winch | Hydraulic 2.000 daN |
| Bean/ FMC pump | Yes, L06-18 or L11-22 |
| High presure waterpump | yes |
| Eijkelkamp Service Assistant | Included |
