Cone Penetration Testing is a soil investigation technique that was developed some 90 years ago and is now utilised all around the world to establish soil behaviour and soil stratigraphy. Through the use of additional modules, the technique can be used not only for geotechnical investigations, but also for hydrogeological and geo-environmental investigations.
Read more
Cone Penetration Testing is an efficient and rapidly evolving ground investigation technique used to determine soil properties and delineate soil layers. The CPT is an in-situ test, meaning that the data is collected by testing the soil in the ground without the need for sampling, logging and laboratory testing.

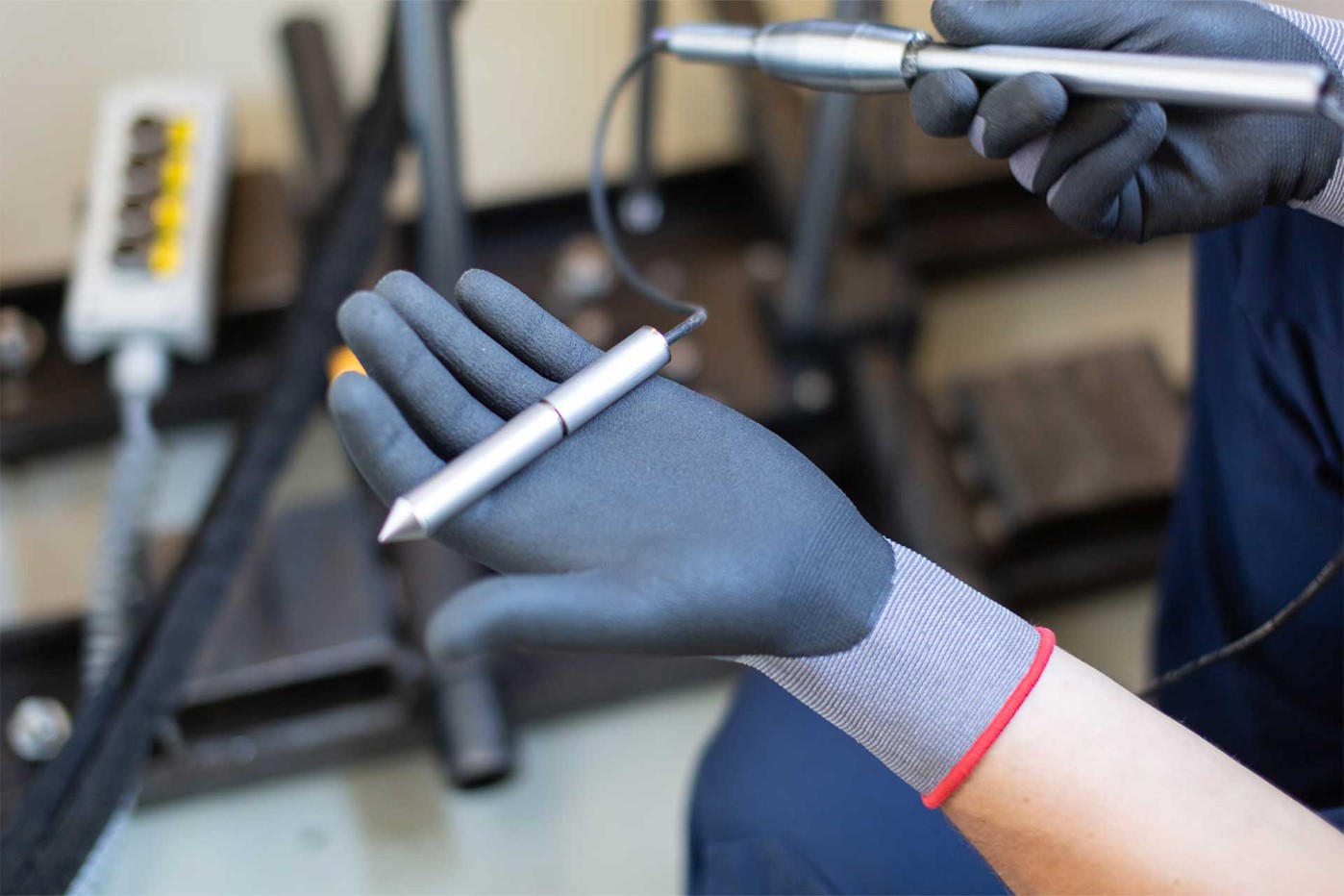

During CPT an instrumented cone is pushed into the ground and provides, in real time, three soil parameters: cone tip resistance, sleeve friction and porewater pressure.
The carefully calibrated cones are highly sensitive and able to detect even the smallest changes in soil properties, which would be missed or averaged out in less sensitive ground investigation techniques. This makes CPT data the ideal tool for a wide variety of geotechnical and geohydrological engineering applications.
During CPT the cone is pushed into the ground, normally with the use of a hydraulic push frame, sometimes called rams. These push frames are normally mounted to a CPT rig which will provide the reaction force to advance the cone either through weight, such as a fully ballasted CPT truck or boxed crawler or through the use of ground anchors such as with a compact crawler system.
The CPT cone is advanced using CPT rods, within which is a data cable that provides real time data throughout the test, allowing the user to spot obstructions quickly and prevent damage to the equipment. To collect even more data in one push, various add-on modules can be mounted to the back of the cone. These modules can be used to obtain seismic data, conductivity data, or various other soil parameters that can be used to contribute to a detailed ground model.
Royal Eijkelkamp can support you at every level of your CPT project. Not only by helping you to define exactly what equipment is needed for your individual project, and supplying you with that equipment, but also by helping develop execution plans for specific project and equipping you with the knowledge required to get the most out of CPT.
Our experts provide theoretical insights into the testing method and the various options, as well as providing practical guidance and training on how to perform CPT in the most efficient manner - whilst ensuring the collection of high quality CPT data.
Royal Eijkelkamp is not just a CPT manufacturer, but a provider and expert on a huge range of geotechnical solutions. This gives us a broader view, and enables us to support your wider geotechnical needs. As a result, we have developed combination tools such as the Drill’n CPT to easily convert a drill rig into a CPT rig.
We have also developed the ground breaking SonicCPT system that allows you to push the CPT through soil layers that regular CPT cannot penetrate. And finally we can lean on our extensive knowledge of soil and water testing sensors to provide you with site investigation solutions that go beyond traditional CPT.
To achieve the best results with your cone penetration testing equipment, Royal Eijkelkamp offers CPT training for both beginner and experienced operators. There's also a specialised programme that goes into the data collection and validation.
Our CPT product range includes a variety of rigs from easily transportable Compact Crawlers to fully ballasted Boxed Crawlers and our Boxed Truck Crawler. Whatever the ground conditions or access restrictions on your site, we can provide the CPT rig to ensure you can deliver the most efficient ground investigation programme.
