The Akkerman core sampler set is used for taking large undisturbed soil samples in sample tubes with a diameter of 70 x 67 millimetres and a length of 44 centimetres. Using this sampler, samples are taken in stainless steel sampling tubes in auger holes or casing tubes (above as well as under the groundwater level) up to a maximum depth of 50 metres.
Using the Akkerman core sampler, samples are taken in stainless steel sampling tubes in auger holes or casing tubes (above as well as under the groundwater level, casing tubes with minimal diameter 100 millimetre) up to a maximum depth of 50 metres.
The Akkerman core sampler is used in combination with a tripod and hand winch. The sampling tube is beaten into the soil using a falling hammer. After sampling the sampling tube can be sealed off with the PE covers. A sample on the split sample tube can be prepared for transport by covering it with another split tube and sealing the seams and closing both ends with covers.
The hydraulic extruder can only be used to remove the sample from the ordinary sampling tubes. The tubes with core catcher can not be emptied using this extruder. The sample must be removed by tapping or by pulling the plastic liner in which the sample is bedded if the liner had been placed in the core catcher before sampling.
Applications

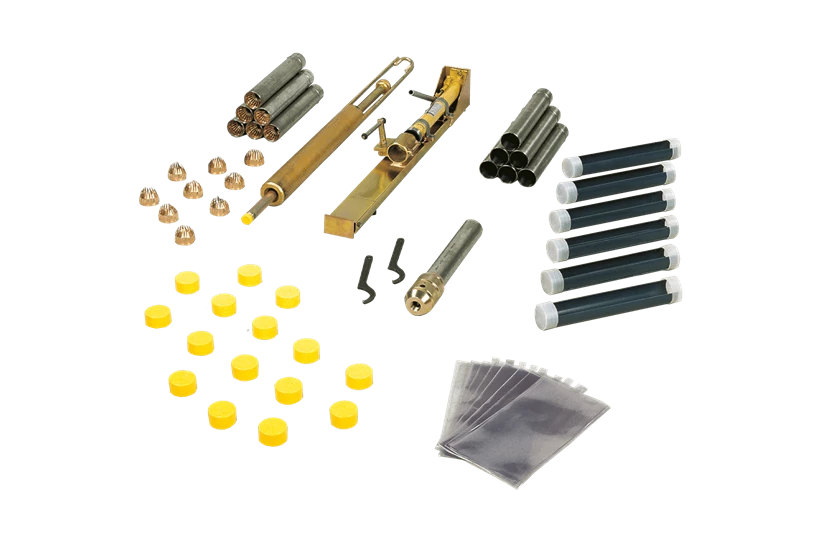

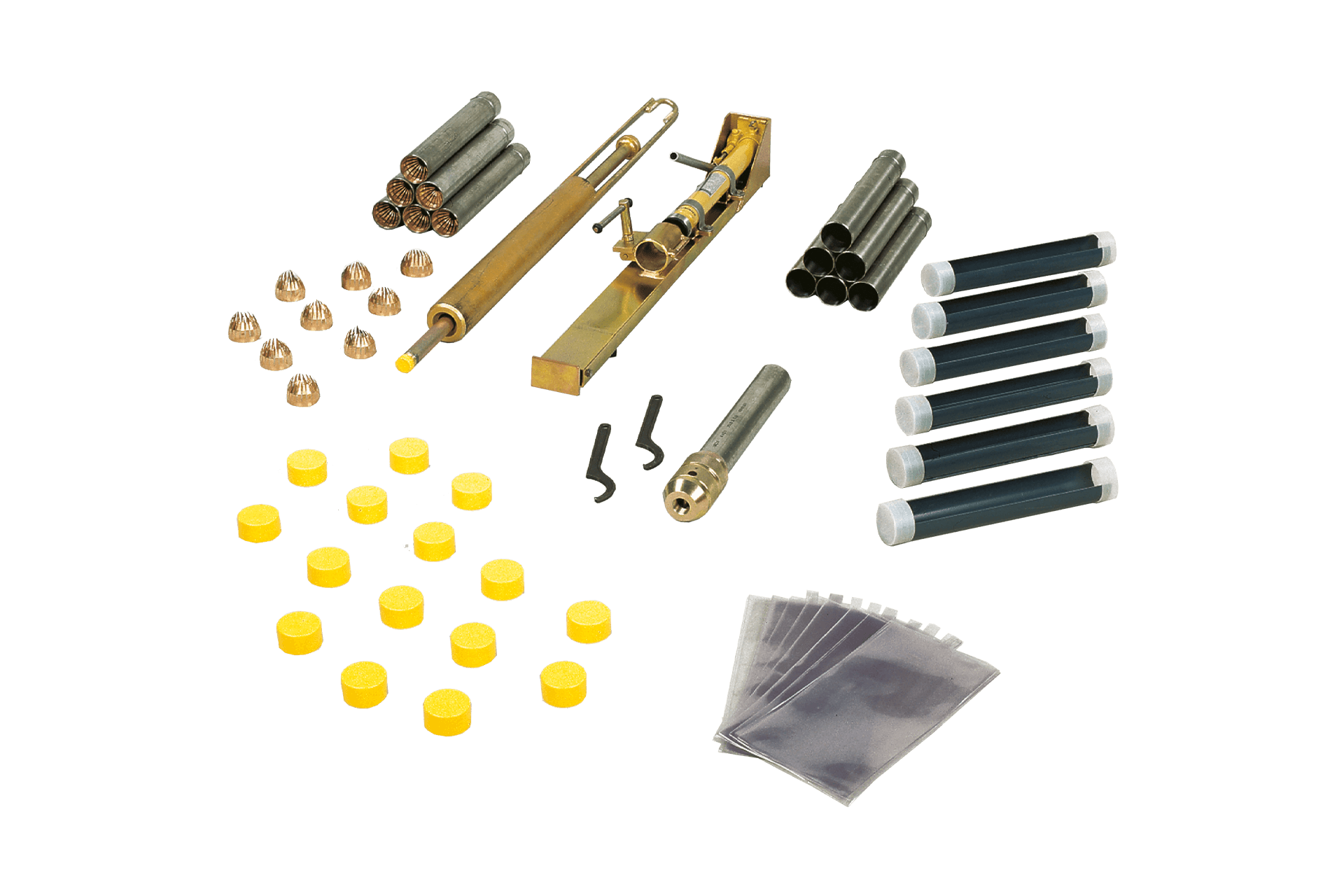

Set contains
| Akkerman core sampler set | |
|---|---|
| Maximum sample depth | 50 m |
| Power supply | Manual |
| Product material | Stainless steel, iron, other material |
| Rod or cable operated | Cable |
| Sample diameter | 67 mm |
| Sample length | 40 cm |
| Sample specification | Undisturbed |
| Sample stored in | Tube |
| Sampler position | Vertical |
| Package size | 130 x 42 x 24 cm |
| Weight | 120 kg |
