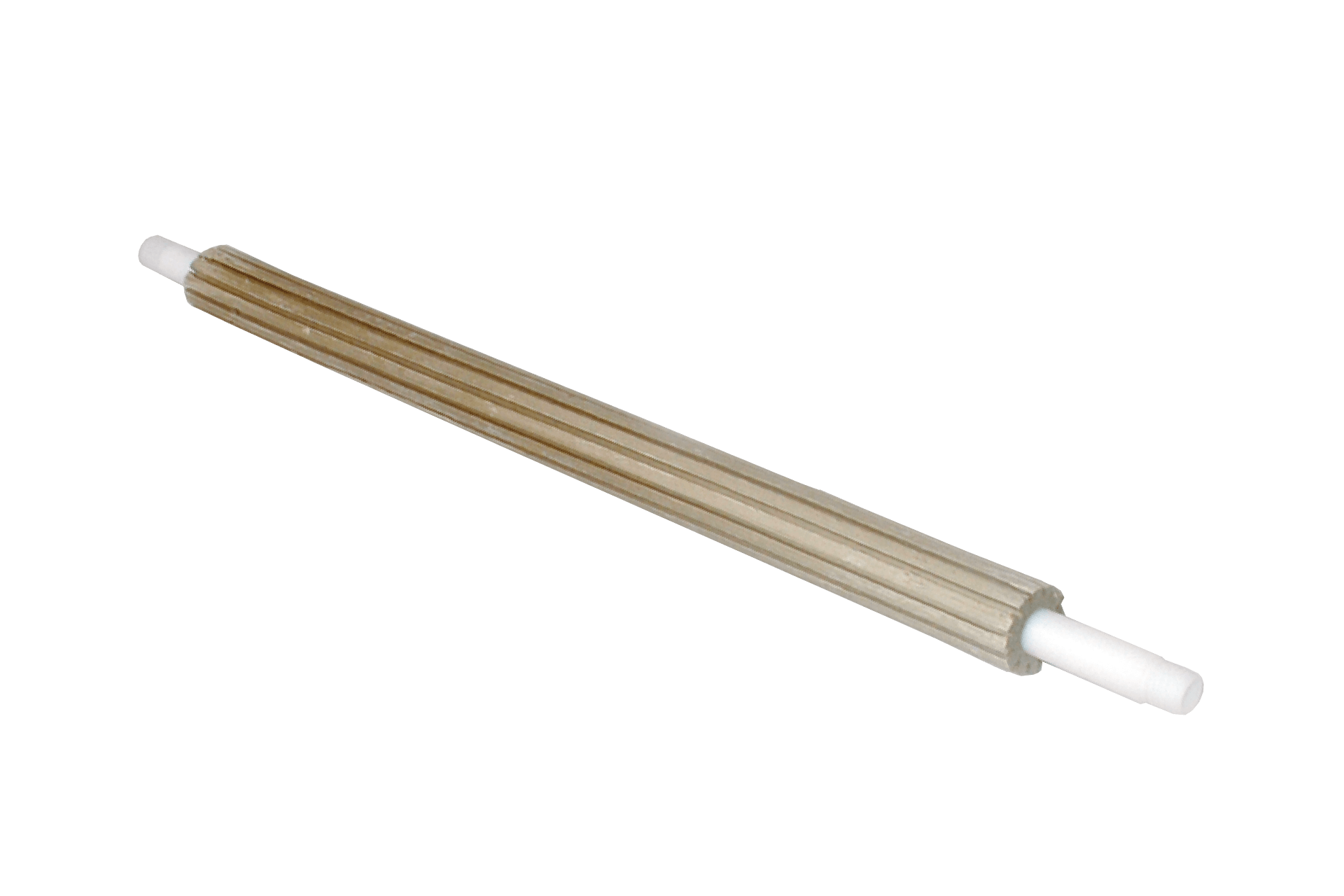

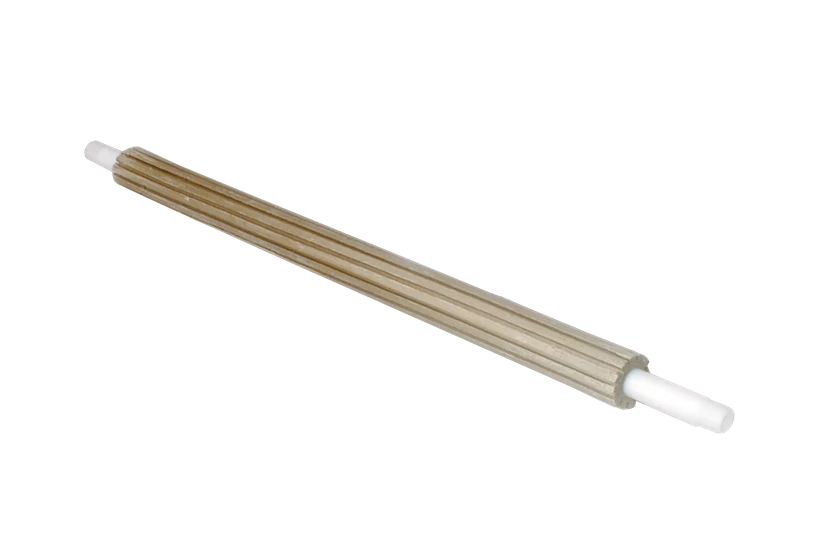

Plain HDPE pipe with screw thread socket, complete with bentonite collar (patent no. 1010059). The pipe is leakproof up to 3.0 bar and has a maximum tensile strength of 551 lb.
This plain pipe with bentonite collar is used to seal the space in the borehole surrounding the monitoring well in an impermeable soil layer. The 3.3 feet long pipes are supplied in sets of 5 pieces.
Available product variations:
10.04.01.20 20x15 mm mini pipe, 35 mm diameter
10.04.03.32 32x25 mm pipe, 60 mm diameter
10.04.01.32 32x25 mm pipe, 70 mm diameter
| Filename |
|---|
| Brochure - Quality Monitoring Wells |
