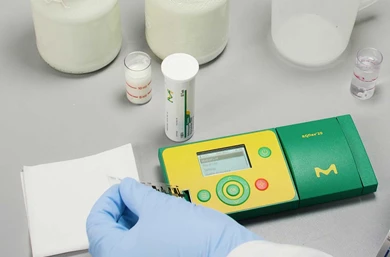

The RQflex Reflectometer is suitable for measuring various anions and cations in soil, water, compost, (pressed) plant material, substrates, etc. The device is portable, for easy use in the field.

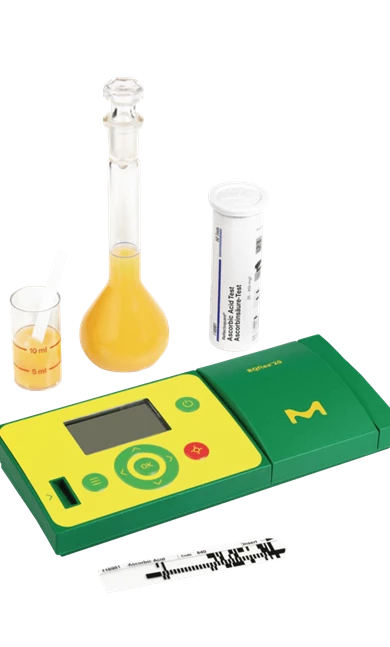

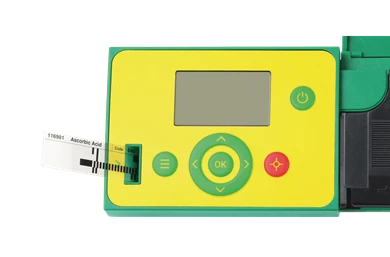

This measuring system consists of various analysis strips for different parameters and the reflectometer. Each type of analysis strip has its own barcode; before using the strips, this barcode must be placed in the meter for adjustment and control. High accuracy measurements due to double optics and load specific adjustment of the test strips.

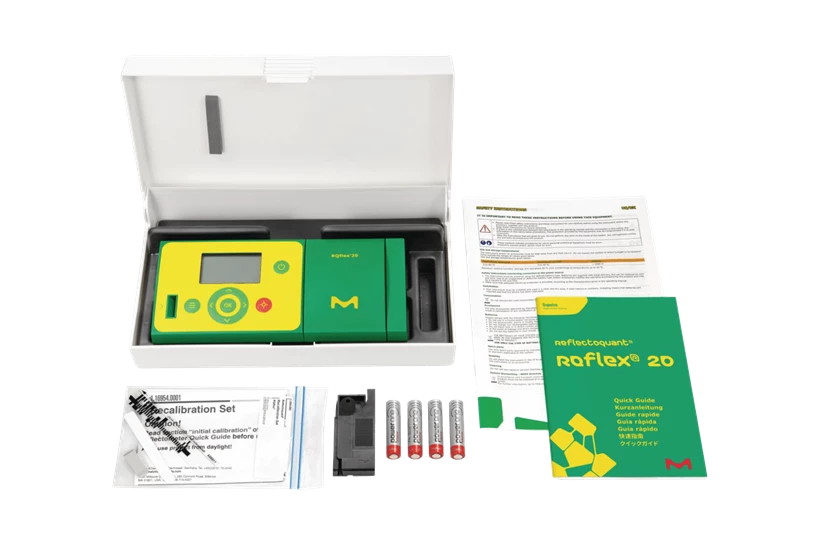

The device is very user-friendly and has a clear LCD display. The user interface is clear and simple. With its dual optics, wavelength correction and load-specific adjustment, the reflectometer is capable of accurate measurements. In addition, it is easy to take along in the field. The Reflectometer is supplied with batteries and accessories in a handy case (excl. test strips).
Applications
Set contains
Suitable for the following test strips
RQflex reflectometer - excl. test strip | |
---|---|
Light source | 4 LEDs (double lens 570/657 nm) |
Measurement range | 4-90% rel reflectance |
Photometric resolution / accuracy | 0.1 / 0.5% rel reflectance |
Measured area | 0.16 x 0.24 in (4 x 6 mm) |
Working temperature | 41-104°F (5-40 ° C) |
Interface | For PC |
Power | 4x AAA batteries (> 1000 measurements) |
Dimensions | 7.5 x 3.15 x 0.79 in / 190 x 80 x 20 mm |
Weight | 0.61 lbs (275 g) |
Filename |
---|
Manual 18.41 Rqflex Reflectometer |
