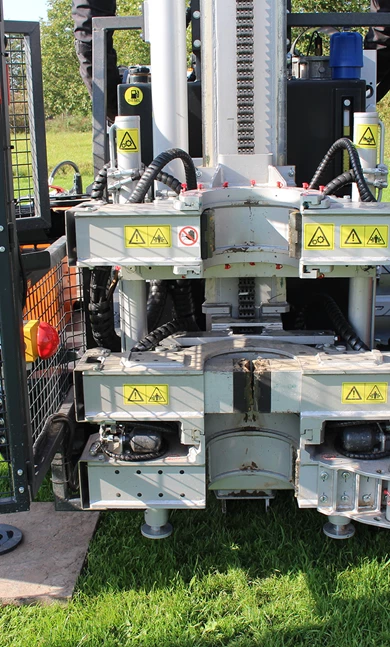

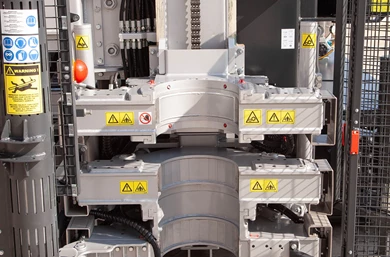

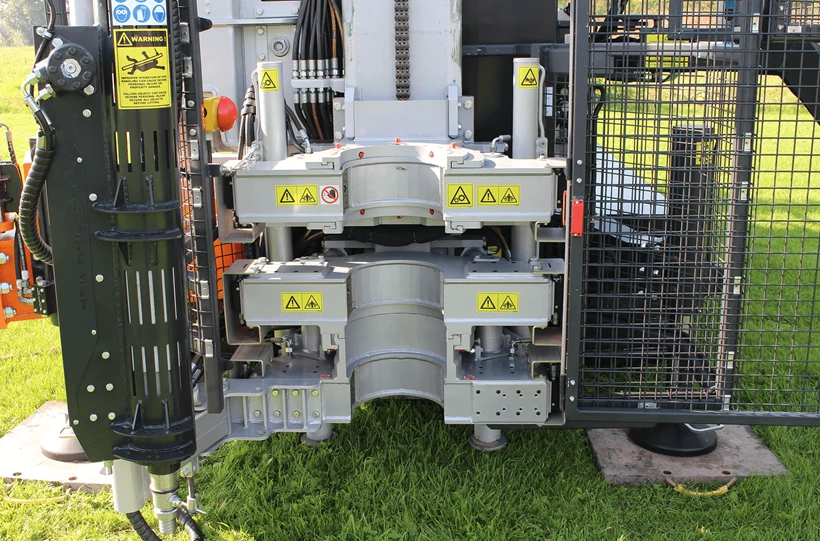

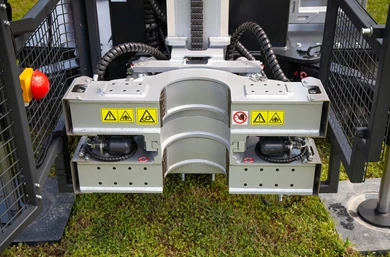

The break-out clamp of Royal Eijkelkamp ensures that you can do your work even more safely and easily. The break-out clamp is mounted on the base part of a casing rod and ensures that breaking out casing or rod connections is done quickly, safely, securely and is ergonomically responsible.
The break-out clamp of Royal Eijkelkamp ensures that you can do your work even more safely and easily. Two types are available: The lighter type allows 2-7.9 in (50-200 mm) casing to be clamped; this type is intended for CompactSonic rigs (not for SonicMast CRS-T or CRS-P). The heavier type 2-7.9 in (50-200 mm) is intended for MidRotoSonic and LargeRotoSonic. Of course, you can screw them to any rig that uses casing or rods of these dimensions.
These are heavy-duty clamps, equipped with oversized bearings and hydraulic components. The construction is based on many years of experience and intensive use. All parts are interchangeable. Grip bit inserts can be changed on site within minutes.
Different types of Break-Out Clamps are available. For complete details contact one of our specialists.
Available variations
| Break-Out Clamps | |
|---|---|
| Grip bits | Exchangeable |
| Operation | Clock- or anti-clockwise |
Need advice choosing the right product? Our specialist Mike is happy to help.
