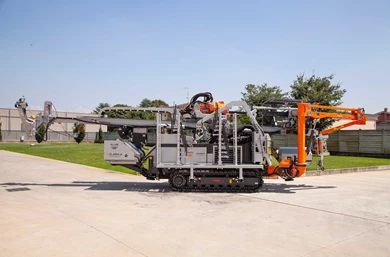

The MidRotoSonic 200 sonic drill rig was developed to recover the best quality samples in a variety of geologies.

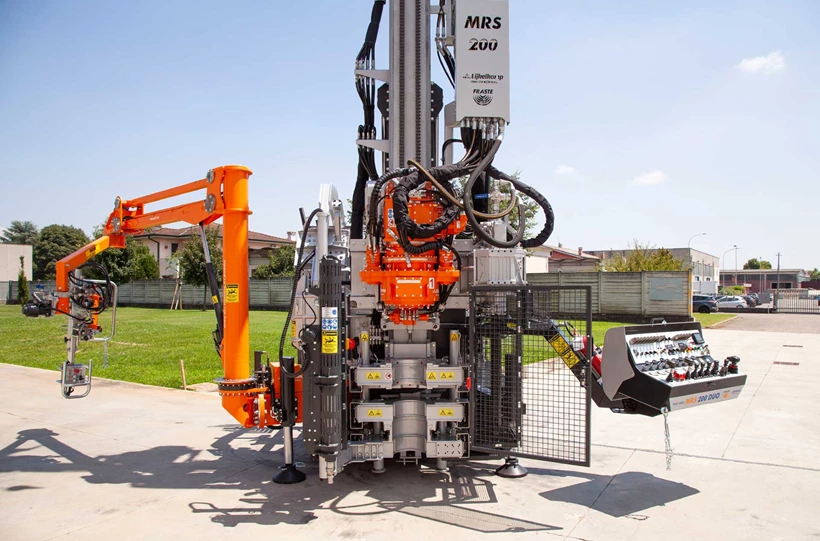

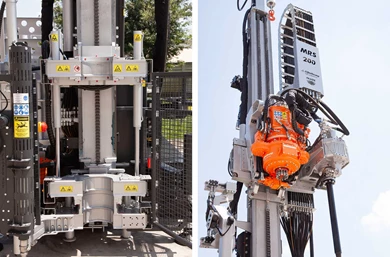

The MRS 200 is a sonic drill rig equipped with a powerful 40k MidRotoSonic drill head, designed to bridge the gap between the CompactRotoSonic 34K and LargeRotoSonic 50K. With a sonic frequency of up to 150 Hz you can benefit from high drilling efficiency in different ground formations.
This sonic rig is also available as DUO.
Applications
This sonic drill rig is very suitable for:
All of our drill rigs can be customised to fit your requirements. We have a Pro or Royal standard configuration, or you can completely customise your rig. Find the full overview of options here: MRS 200 (DUO) Overview.
For a complete list of specifications, please download the brochure below.
| MRS 200 | |
|---|---|
| Sonic vibration oscillator output force | 181 kN | 40 k lbf |
| Drill head tilt | Maximum 90 degrees |
| Pull up/down force in combination with sonic | 6,000 daN | 13,265 lbf |
| Drill head mass | 890 kg | 1,962 lbs |
| Engine | Caterpillar 4 cylinder water cooled, 140 kW | 188 HP |
| Water tank | 500 litres | 132 gallon |
| Fuel tank | Diesel, 170 litres | 45 gallon |
| Mast stroke | 5,200/5,500 mm | 17’1”/18’0.5” |

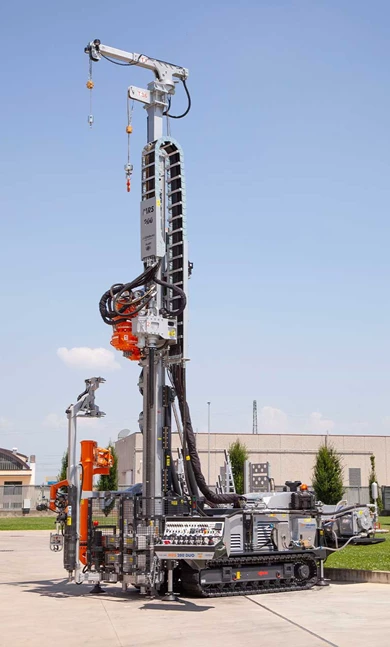

| Maximum height when drilling | 7,500 mm | 24’7” |

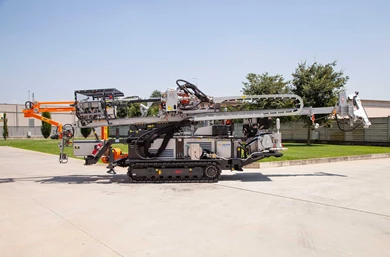

| Dimensions folded (L x W x H) approx. | 8,850 x 2,310 x 2,995 mm | 29’ x 7’7” x 9’11” |
