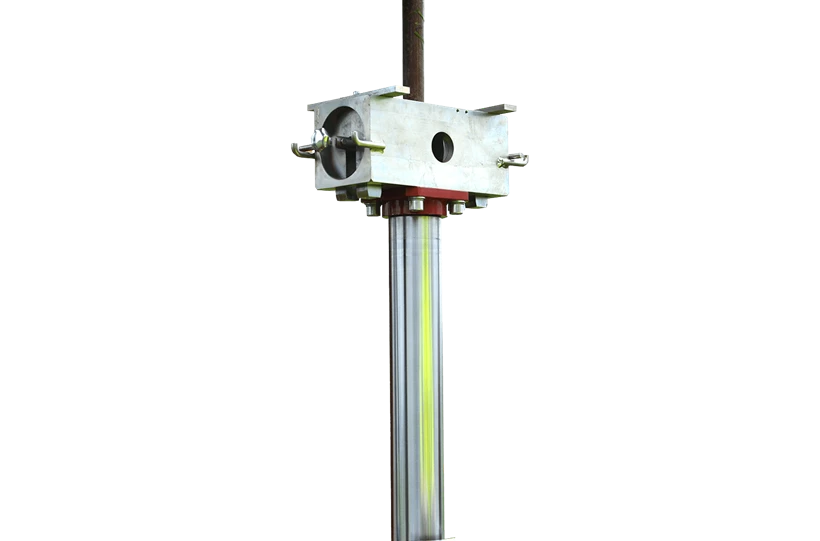

The mechanical push-pull clamp is designed for either CPT tubes or casing tubes.
The mechanical or Pitbull Rod Clamp has a pushing capacity of 200 kN / 20 tf (long) and a pulling capacity of 260 kN./ 26 tf (long). The removable clamping blocks are made of hard metal and are designed so that the force applied on the tubes is distributed evenly over the gripping area. This prevents damage or deformation of the tube.
The ball clamp can be combined with the mechanical clamp to serve as a catching clamp.
| Mechanical push-pull clamp | |
|---|---|
| CPT surrounding tubes | Ø 36 mm | 1.44 in |
| CPT casing tubes | Ø 55 mm | 2.17 in |
